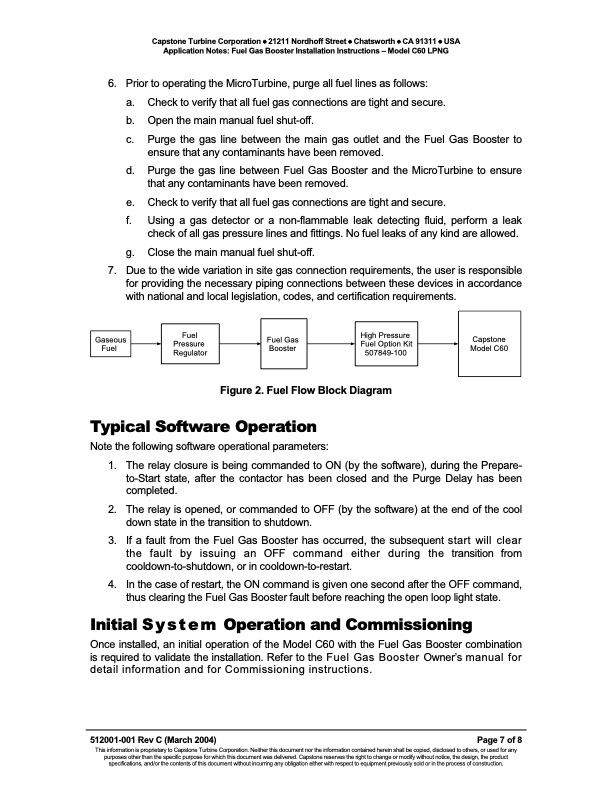

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Notes: Fuel Gas Booster Installation Instructions – Model C60 LPNG 6. Prior to operating the MicroTurbine, purge all fuel lines as follows: a. Check to verify that all fuel gas connections are tight and secure. b. Open the main manual fuel shut-off. c. Purge the gas line between the main gas outlet and the Fuel Gas Booster to ensure that any contaminants have been removed. d. Purge the gas line between Fuel Gas Booster and the MicroTurbine to ensure that any contaminants have been removed. e. Check to verify that all fuel gas connections are tight and secure. f. Using a gas detector or a non-flammable leak detecting fluid, perform a leak check of all gas pressure lines and fittings. No fuel leaks of any kind are allowed. g. Close the main manual fuel shut-off. 7. Due to the wide variation in site gas connection requirements, the user is responsible for providing the necessary piping connections between these devices in accordance with national and local legislation, codes, and certification requirements. Figure 2. Fuel Flow Block Diagram Typical Software Operation Note the following software operational parameters: 1. The relay closure is being commanded to ON (by the software), during the Prepare- to-Start state, after the contactor has been closed and the Purge Delay has been completed. 2. The relay is opened, or commanded to OFF (by the software) at the end of the cool down state in the transition to shutdown. 3. If a fault from the Fuel Gas Booster has occurred, the subsequent start will clear the fault by issuing an OFF command either during the transition from cooldown-to-shutdown, or in cooldown-to-restart. 4. In the case of restart, the ON command is given one second after the OFF command, thus clearing the Fuel Gas Booster fault before reaching the open loop light state. Initial System Operation and Commissioning Once installed, an initial operation of the Model C60 with the Fuel Gas Booster combination is required to validate the installation. Refer to the Fuel Gas Booster Owner’s manual for detail information and for Commissioning instructions. 512001-001 Rev C (March 2004) Page 7 of 8 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Gaseous Fuel Fuel Pressure Regulator Fuel Gas Booster High Pressure Fuel Option Kit 507849-100 Capstone Model C60PDF Image | Fuel Gas Booster Installation Instructions Model C60 MicroTurbine - Low Pressure Natural GasApplication Notes
PDF Search Title:
Fuel Gas Booster Installation Instructions Model C60 MicroTurbine - Low Pressure Natural GasApplication NotesOriginal File Name Searched:
