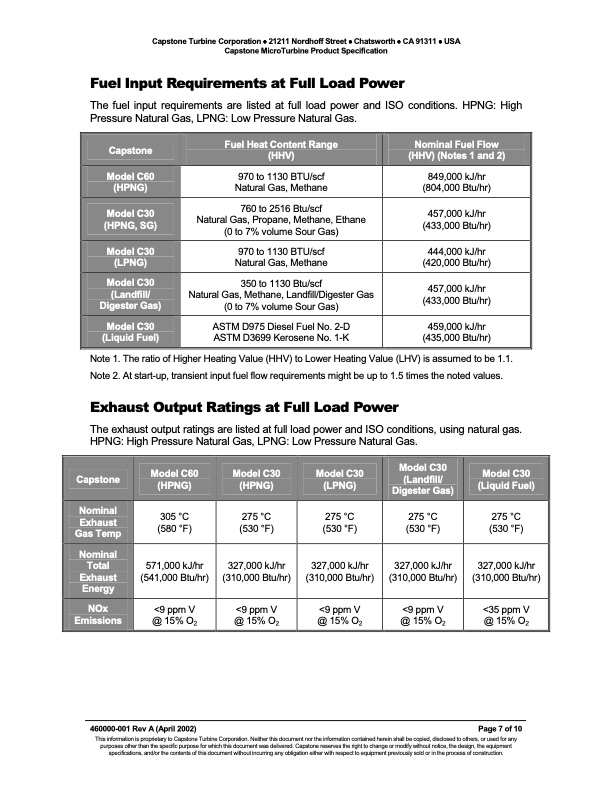

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone MicroTurbine Product Specification Fuel Input Requirements at Full Load Power The fuel input requirements are listed at full load power and ISO conditions. HPNG: High Pressure Natural Gas, LPNG: Low Pressure Natural Gas. Capstone Fuel Heat Content Range (HHV) Model C60 (HPNG) 970 to 1130 BTU/scf Natural Gas, Methane 970 to 1130 BTU/scf Natural Gas, Methane ASTM D975 Diesel Fuel No. 2-D ASTM D3699 Kerosene No. 1-K 849,000 kJ/hr (804,000 Btu/hr) 444,000 kJ/hr (420,000 Btu/hr) 459,000 kJ/hr (435,000 Btu/hr) Nominal Fuel Flow (HHV) (Notes 1 and 2) 760 to 2516 Btu/scf Natural Gas, Propane, Methane, Ethane (0 to 7% volume Sour Gas) 457,000 kJ/hr (433,000 Btu/hr) Model C30 (HPNG, SG) Model C30 (LPNG) 350 to 1130 Btu/scf Natural Gas, Methane, Landfill/Digester Gas (0 to 7% volume Sour Gas) 457,000 kJ/hr (433,000 Btu/hr) Model C30 (Landfill/ Digester Gas) Model C30 (Liquid Fuel) Note 1. The ratio of Higher Heating Value (HHV) to Lower Heating Value (LHV) is assumed to be 1.1. Note 2. At start-up, transient input fuel flow requirements might be up to 1.5 times the noted values. Exhaust Output Ratings at Full Load Power The exhaust output ratings are listed at full load power and ISO conditions, using natural gas. HPNG: High Pressure Natural Gas, LPNG: Low Pressure Natural Gas. Capstone Model C60 (HPNG) Model C30 (HPNG) <9 ppm V <9 ppm V <9 ppm V <9 ppm V <35 ppm V @15%O2 @15%O2 @15%O2 @15%O2 @15%O2 460000-001 Rev A (April 2002) Page 7 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Model C30 (LPNG) Model C30 (Landfill/ Digester Gas) Model C30 (Liquid Fuel) Nominal Exhaust Gas Temp 305 °C (580 °F) 275 °C (530 °F) 275 °C (530 °F) 275 °C (530 °F) 275 °C (530 °F) Nominal Total Exhaust Energy 571,000 kJ/hr (541,000 Btu/hr) 327,000 kJ/hr (310,000 Btu/hr) 327,000 kJ/hr (310,000 Btu/hr) 327,000 kJ/hr (310,000 Btu/hr) 327,000 kJ/hr (310,000 Btu/hr) NOx EmissionsPDF Image | for a Single Capstone MicroTurbine (Enclosed and Recuperated)
