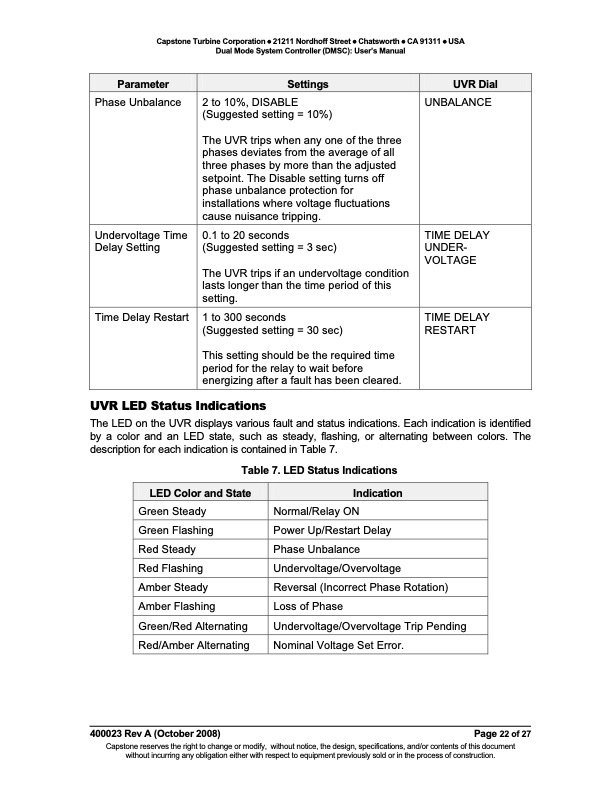

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode System Controller (DMSC): User’s Manual Parameter Settings UVR Dial Phase Unbalance 2 to 10%, DISABLE (Suggested setting = 10%) The UVR trips when any one of the three phases deviates from the average of all three phases by more than the adjusted setpoint. The Disable setting turns off phase unbalance protection for installations where voltage fluctuations cause nuisance tripping. UNBALANCE Undervoltage Time Delay Setting 0.1 to 20 seconds (Suggested setting = 3 sec) The UVR trips if an undervoltage condition lasts longer than the time period of this setting. TIME DELAY UNDER- VOLTAGE Time Delay Restart 1 to 300 seconds (Suggested setting = 30 sec) This setting should be the required time period for the relay to wait before energizing after a fault has been cleared. TIME DELAY RESTART UVR LED Status Indications The LED on the UVR displays various fault and status indications. Each indication is identified by a color and an LED state, such as steady, flashing, or alternating between colors. The description for each indication is contained in Table 7. Table 7. LED Status Indications LED Color and State Indication Green Steady Green Flashing Red Steady Red Flashing Amber Steady Amber Flashing Green/Red Alternating Red/Amber Alternating 400023 Rev A (October 2008) Normal/Relay ON Power Up/Restart Delay Phase Unbalance Undervoltage/Overvoltage Reversal (Incorrect Phase Rotation) Loss of Phase Undervoltage/Overvoltage Trip Pending Nominal Voltage Set Error. Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 22 of 27PDF Image | DUAL MODE SYSTEM CONTROLLER (DMSC) USER’S MANUAL
