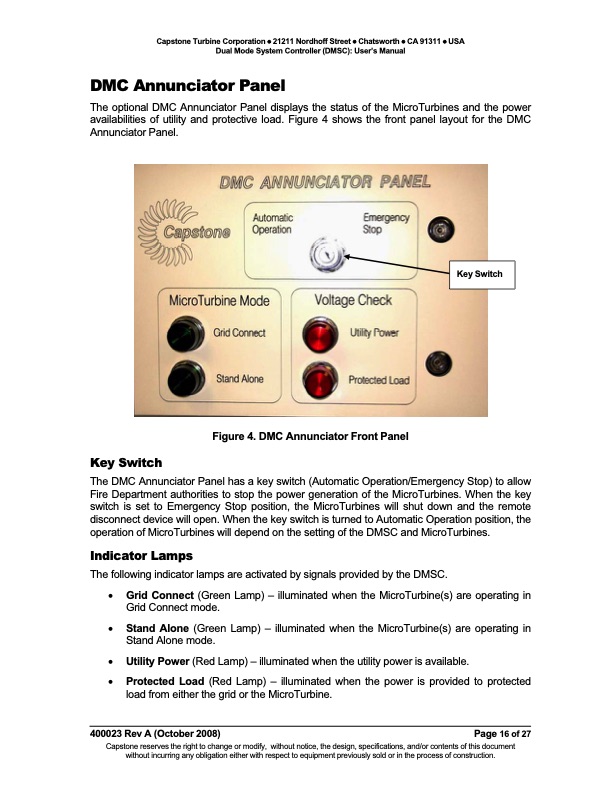

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode System Controller (DMSC): User’s Manual DMC Annunciator Panel The optional DMC Annunciator Panel displays the status of the MicroTurbines and the power availabilities of utility and protective load. Figure 4 shows the front panel layout for the DMC Annunciator Panel. Key Switch The DMC Annunciator Panel has a key switch (Automatic Operation/Emergency Stop) to allow Fire Department authorities to stop the power generation of the MicroTurbines. When the key switch is set to Emergency Stop position, the MicroTurbines will shut down and the remote disconnect device will open. When the key switch is turned to Automatic Operation position, the operation of MicroTurbines will depend on the setting of the DMSC and MicroTurbines. Indicator Lamps The following indicator lamps are activated by signals provided by the DMSC. • Grid Connect (Green Lamp) – illuminated when the MicroTurbine(s) are operating in Grid Connect mode. • Stand Alone (Green Lamp) – illuminated when the MicroTurbine(s) are operating in Stand Alone mode. • Utility Power (Red Lamp) – illuminated when the utility power is available. • Protected Load (Red Lamp) – illuminated when the power is provided to protected load from either the grid or the MicroTurbine. 400023 Rev A (October 2008) Page 16 of 27 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Key Switch Figure 4. DMC Annunciator Front PanelPDF Image | DUAL MODE SYSTEM CONTROLLER (DMSC) USER’S MANUAL
