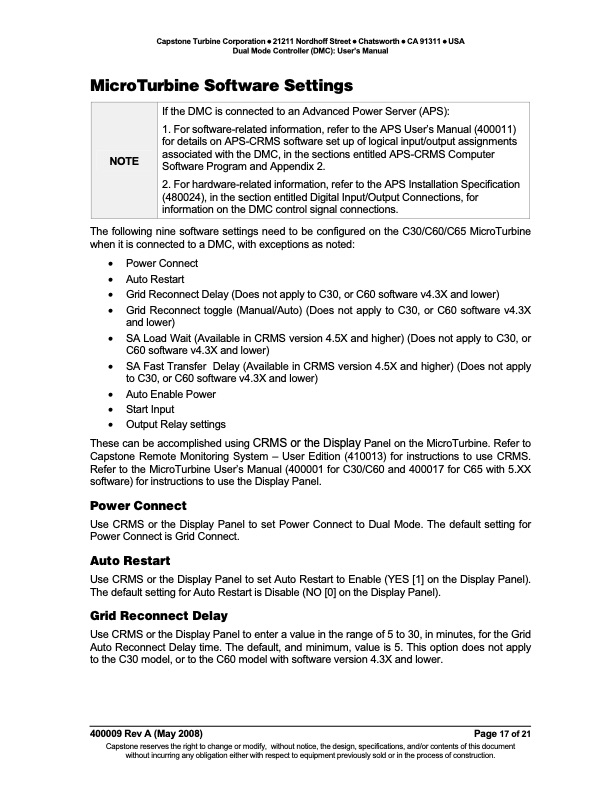

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual MicroTurbine Software Settings NOTE If the DMC is connected to an Advanced Power Server (APS): 1. For software-related information, refer to the APS User’s Manual (400011) for details on APS-CRMS software set up of logical input/output assignments associated with the DMC, in the sections entitled APS-CRMS Computer Software Program and Appendix 2. 2. For hardware-related information, refer to the APS Installation Specification (480024), in the section entitled Digital Input/Output Connections, for information on the DMC control signal connections. The following nine software settings need to be configured on the C30/C60/C65 MicroTurbine when it • • • • • • • • • is connected to a DMC, with exceptions as noted: Power Connect Auto Restart Grid Reconnect Delay (Does not apply to C30, or C60 software v4.3X and lower) Grid Reconnect toggle (Manual/Auto) (Does not apply to C30, or C60 software v4.3X and lower) SA Load Wait (Available in CRMS version 4.5X and higher) (Does not apply to C30, or C60 software v4.3X and lower) SA Fast Transfer Delay (Available in CRMS version 4.5X and higher) (Does not apply to C30, or C60 software v4.3X and lower) Auto Enable Power Start Input Output Relay settings These can be accomplished using CRMS or the Display Panel on the MicroTurbine. Refer to Capstone Remote Monitoring System – User Edition (410013) for instructions to use CRMS. Refer to the MicroTurbine User’s Manual (400001 for C30/C60 and 400017 for C65 with 5.XX software) for instructions to use the Display Panel. Power Connect Use CRMS or the Display Panel to set Power Connect to Dual Mode. The default setting for Power Connect is Grid Connect. Auto Restart Use CRMS or the Display Panel to set Auto Restart to Enable (YES [1] on the Display Panel). The default setting for Auto Restart is Disable (NO [0] on the Display Panel). Grid Reconnect Delay Use CRMS or the Display Panel to enter a value in the range of 5 to 30, in minutes, for the Grid Auto Reconnect Delay time. The default, and minimum, value is 5. This option does not apply to the C30 model, or to the C60 model with software version 4.3X and lower. 400009 Rev A (May 2008) Page 17 of 21 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
