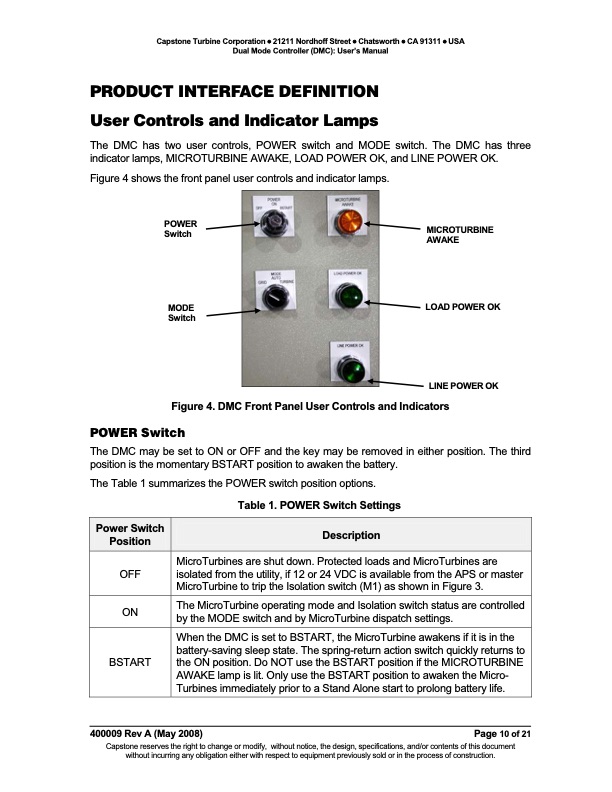

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Dual Mode Controller (DMC): User’s Manual PRODUCT INTERFACE DEFINITION User Controls and Indicator Lamps The DMC has two user controls, POWER switch and MODE switch. The DMC has three indicator lamps, MICROTURBINE AWAKE, LOAD POWER OK, and LINE POWER OK. Figure 4 shows the front panel user controls and indicator lamps. POWER Switch MICROTURBINE AWAKE MODE LOAD POWER OK Switch LINE POWER OK Figure 4. DMC Front Panel User Controls and Indicators POWER Switch The DMC may be set to ON or OFF and the key may be removed in either position. The third position is the momentary BSTART position to awaken the battery. The Table 1 summarizes the POWER switch position options. Power Switch Position Description OFF MicroTurbines are shut down. Protected loads and MicroTurbines are isolated from the utility, if 12 or 24 VDC is available from the APS or master MicroTurbine to trip the Isolation switch (M1) as shown in Figure 3. ON Table 1. POWER Switch Settings The MicroTurbine operating mode and Isolation switch status are controlled by the MODE switch and by MicroTurbine dispatch settings. BSTART When the DMC is set to BSTART, the MicroTurbine awakens if it is in the battery-saving sleep state. The spring-return action switch quickly returns to the ON position. Do NOT use the BSTART position if the MICROTURBINE AWAKE lamp is lit. Only use the BSTART position to awaken the Micro- Turbines immediately prior to a Stand Alone start to prolong battery life. 400009 Rev A (May 2008) Page 10 of 21 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | DUAL MODE CONTROLLER (DMC) USER’S MANUAL
