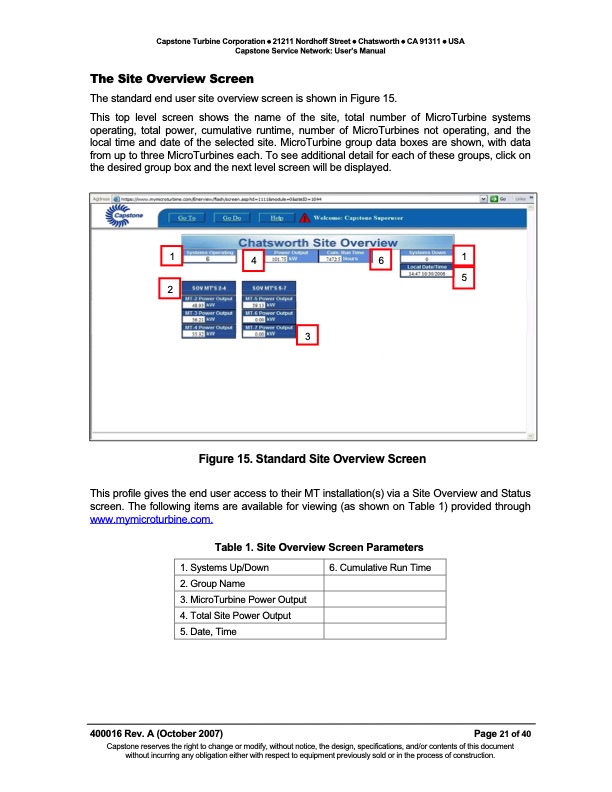

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Service Network: User’s Manual The Site Overview Screen The standard end user site overview screen is shown in Figure 15. This top level screen shows the name of the site, total number of MicroTurbine systems operating, total power, cumulative runtime, number of MicroTurbines not operating, and the local time and date of the selected site. MicroTurbine group data boxes are shown, with data from up to three MicroTurbines each. To see additional detail for each of these groups, click on the desired group box and the next level screen will be displayed. 1461 2 5 3 Figure 15. Standard Site Overview Screen This profile gives the end user access to their MT installation(s) via a Site Overview and Status screen. The following items are available for viewing (as shown on Table 1) provided through www.mymicroturbine.com. Table 1. Site Overview Screen Parameters 1. Systems Up/Down 2. Group Name 3. MicroTurbine Power Output 4. Total Site Power Output 5. Date, Time 400016 Rev. A (October 2007) 6. Cumulative Run Time Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 21 of 40PDF Image | CAPSTONE SERVICE NETWORK USER'S MANUAL
