Text from PDF Page: 026

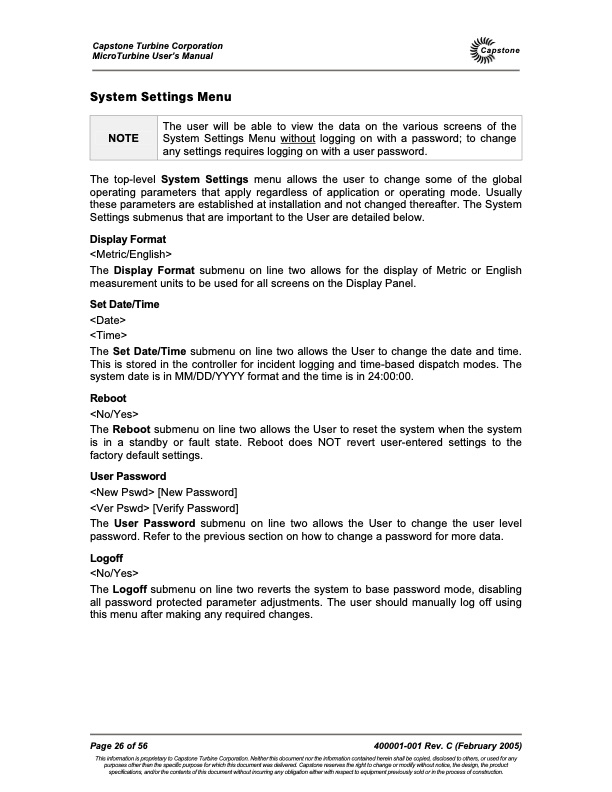

Capstone Turbine Corporation MicroTurbine User’s Manual System Settings Menu Capstone NOTE The user will be able to view the data on the various screens of the System Settings Menu without logging on with a password; to change any settings requires logging on with a user password. The top-level System Settings menu allows the user to change some of the global operating parameters that apply regardless of application or operating mode. Usually these parameters are established at installation and not changed thereafter. The System Settings submenus that are important to the User are detailed below. Display Format The Display Format submenu on line two allows for the display of Metric or English measurement units to be used for all screens on the Display Panel. Set Date/Time The Set Date/Time submenu on line two allows the User to change the date and time. This is stored in the controller for incident logging and time-based dispatch modes. The system date is in MM/DD/YYYY format and the time is in 24:00:00. Reboot The Reboot submenu on line two allows the User to reset the system when the system is in a standby or fault state. Reboot does NOT revert user-entered settings to the factory default settings. User Password [New Password] [Verify Password] The User Password submenu on line two allows the User to change the user level password. Refer to the previous section on how to change a password for more data. Logoff The Logoff submenu on line two reverts the system to base password mode, disabling all password protected parameter adjustments. The user should manually log off using this menu after making any required changes. Page 26 of 56 400001-001 Rev. C (February 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
