Text from PDF Page: 024

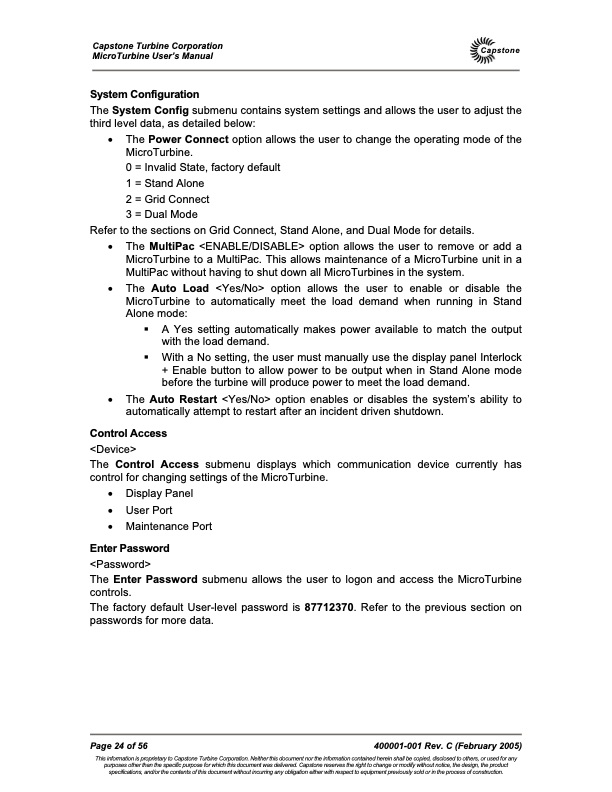

Capstone Turbine Corporation MicroTurbine User’s Manual Capstone System Configuration The System Config submenu contains system settings and allows the user to adjust the third level data, as detailed below: • The Power Connect option allows the user to change the operating mode of the MicroTurbine. 0 = Invalid State, factory default 1 = Stand Alone 2 = Grid Connect 3 = Dual Mode Refer to the sections on Grid Connect, Stand Alone, and Dual Mode for details. • The MultiPac option allows the user to remove or add a MicroTurbine to a MultiPac. This allows maintenance of a MicroTurbine unit in a MultiPac without having to shut down all MicroTurbines in the system. • The Auto Load option allows the user to enable or disable the MicroTurbine to automatically meet the load demand when running in Stand Alone mode: 􏰩 A Yes setting automatically makes power available to match the output with the load demand. 􏰩 With a No setting, the user must manually use the display panel Interlock + Enable button to allow power to be output when in Stand Alone mode before the turbine will produce power to meet the load demand. • The Auto Restart option enables or disables the system’s ability to automatically attempt to restart after an incident driven shutdown. Control Access The Control Access submenu displays which communication device currently has control for changing settings of the MicroTurbine. • Display Panel • User Port • Maintenance Port Enter Password The Enter Password submenu allows the user to logon and access the MicroTurbine controls. The factory default User-level password is 87712370. Refer to the previous section on passwords for more data. Page 24 of 56 400001-001 Rev. C (February 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

PDF Image | Capstone MicroTurbine User's Manual
