PDF Publication Title:
Text from PDF Page: 021

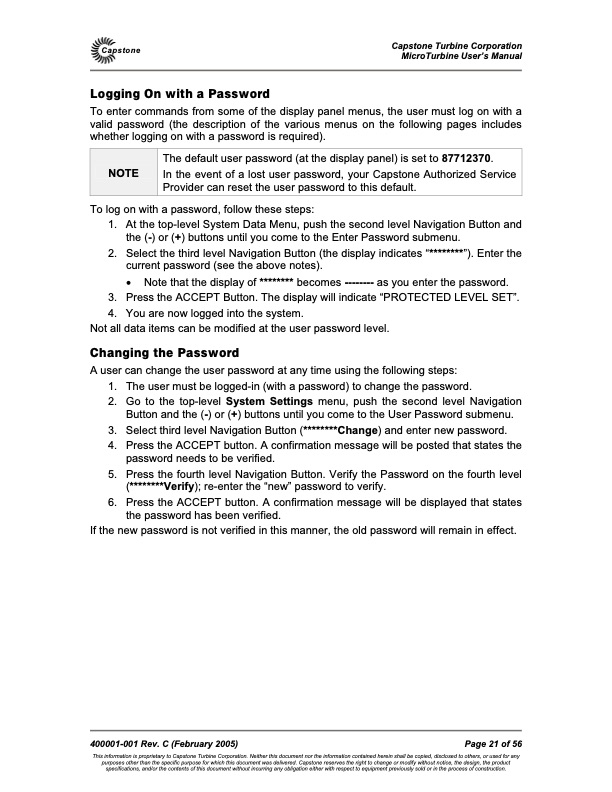

Capstone Logging On with a Password Capstone Turbine Corporation MicroTurbine User’s Manual To enter commands from some of the display panel menus, the user must log on with a valid password (the description of the various menus on the following pages includes whether logging on with a password is required). To log on with a password, follow these steps: 1. At the top-level System Data Menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the Enter Password submenu. 2. Select the third level Navigation Button (the display indicates “********”). Enter the current password (see the above notes). • Note that the display of ******** becomes -------- as you enter the password. 3. Press the ACCEPT Button. The display will indicate “PROTECTED LEVEL SET”. 4. You are now logged into the system. Not all data items can be modified at the user password level. Changing the Password A user can change the user password at any time using the following steps: 1. The user must be logged-in (with a password) to change the password. 2. Go to the top-level System Settings menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the User Password submenu. 3. Select third level Navigation Button (********Change) and enter new password. 4. Press the ACCEPT button. A confirmation message will be posted that states the password needs to be verified. 5. Press the fourth level Navigation Button. Verify the Password on the fourth level (********Verify); re-enter the “new” password to verify. 6. Press the ACCEPT button. A confirmation message will be displayed that states the password has been verified. If the new password is not verified in this manner, the old password will remain in effect. NOTE The default user password (at the display panel) is set to 87712370. In the event of a lost user password, your Capstone Authorized Service Provider can reset the user password to this default. 400001-001 Rev. C (February 2005) Page 21 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine User's Manual
PDF Search Title:
Capstone MicroTurbine User's ManualOriginal File Name Searched:
400001_C30_C60_MicroTurbine_Users_Manual.pdfDIY PDF Search: Google It | Yahoo | Bing
