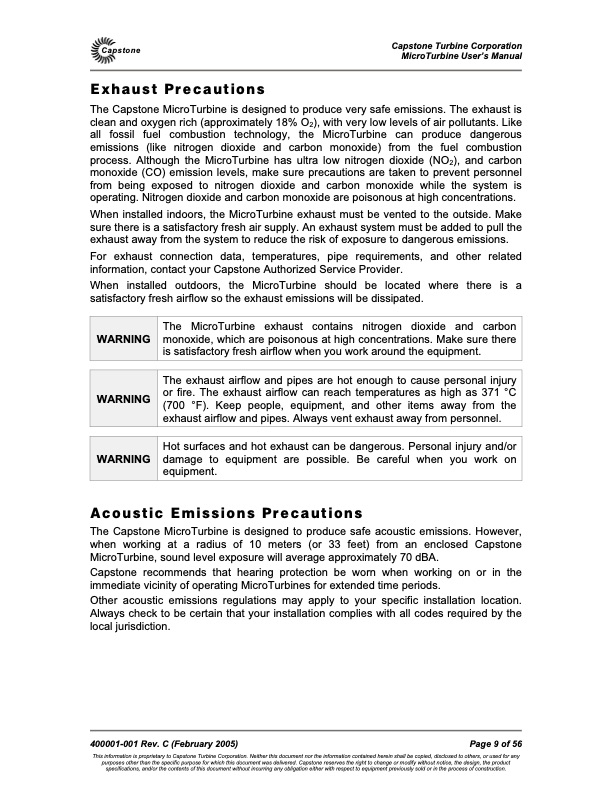

Capstone Exhaust Precautions Capstone Turbine Corporation MicroTurbine User’s Manual The Capstone MicroTurbine is designed to produce very safe emissions. The exhaust is clean and oxygen rich (approximately 18% O2), with very low levels of air pollutants. Like all fossil fuel combustion technology, the MicroTurbine can produce dangerous emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. Although the MicroTurbine has ultra low nitrogen dioxide (NO2), and carbon monoxide (CO) emission levels, make sure precautions are taken to prevent personnel from being exposed to nitrogen dioxide and carbon monoxide while the system is operating. Nitrogen dioxide and carbon monoxide are poisonous at high concentrations. When installed indoors, the MicroTurbine exhaust must be vented to the outside. Make sure there is a satisfactory fresh air supply. An exhaust system must be added to pull the exhaust away from the system to reduce the risk of exposure to dangerous emissions. For exhaust connection data, temperatures, pipe requirements, and other related information, contact your Capstone Authorized Service Provider. When installed outdoors, the MicroTurbine should be located where there is a satisfactory fresh airflow so the exhaust emissions will be dissipated. WARNING The MicroTurbine exhaust contains nitrogen dioxide and carbon monoxide, which are poisonous at high concentrations. Make sure there is satisfactory fresh airflow when you work around the equipment. WARNING The exhaust airflow and pipes are hot enough to cause personal injury or fire. The exhaust airflow can reach temperatures as high as 371 °C (700 °F). Keep people, equipment, and other items away from the exhaust airflow and pipes. Always vent exhaust away from personnel. WARNING Hot surfaces and hot exhaust can be dangerous. Personal injury and/or damage to equipment are possible. Be careful when you work on equipment. Acoustic Emissions Precautions The Capstone MicroTurbine is designed to produce safe acoustic emissions. However, when working at a radius of 10 meters (or 33 feet) from an enclosed Capstone MicroTurbine, sound level exposure will average approximately 70 dBA. Capstone recommends that hearing protection be worn when working on or in the immediate vicinity of operating MicroTurbines for extended time periods. Other acoustic emissions regulations may apply to your specific installation location. Always check to be certain that your installation complies with all codes required by the local jurisdiction. 400001-001 Rev. C (February 2005) Page 9 of 56 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine User's Manual
