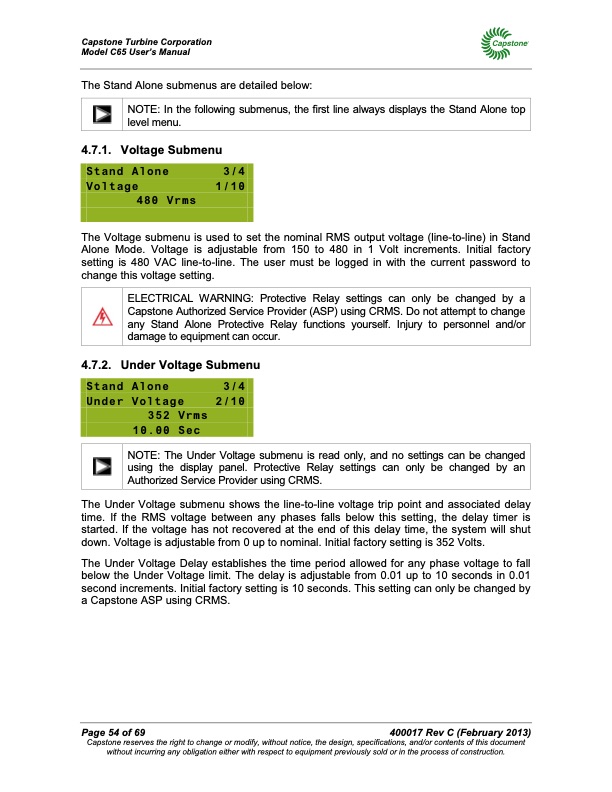

Capstone Turbine Corporation Model C65 User’s Manual The Stand Alone submenus are detailed below: NOTE: In the following submenus, the first line always displays the Stand Alone top level menu. 4.7.1. Voltage Submenu The Voltage submenu is used to set the nominal RMS output voltage (line-to-line) in Stand Alone Mode. Voltage is adjustable from 150 to 480 in 1 Volt increments. Initial factory setting is 480 VAC line-to-line. The user must be logged in with the current password to change this voltage setting. 4.7.2. Under Voltage Submenu Stand Alone 3/4 Voltage 1/10 480 Vrms ELECTRICAL WARNING: Protective Relay settings can only be changed by a Capstone Authorized Service Provider (ASP) using CRMS. Do not attempt to change any Stand Alone Protective Relay functions yourself. Injury to personnel and/or damage to equipment can occur. Stand Alone 3/4 Under Voltage 2/10 352 Vrms 10.00 Sec NOTE: The Under Voltage submenu is read only, and no settings can be changed using the display panel. Protective Relay settings can only be changed by an Authorized Service Provider using CRMS. The Under Voltage submenu shows the line-to-line voltage trip point and associated delay time. If the RMS voltage between any phases falls below this setting, the delay timer is started. If the voltage has not recovered at the end of this delay time, the system will shut down. Voltage is adjustable from 0 up to nominal. Initial factory setting is 352 Volts. The Under Voltage Delay establishes the time period allowed for any phase voltage to fall below the Under Voltage limit. The delay is adjustable from 0.01 up to 10 seconds in 0.01 second increments. Initial factory setting is 10 seconds. This setting can only be changed by a Capstone ASP using CRMS. Page 54 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
