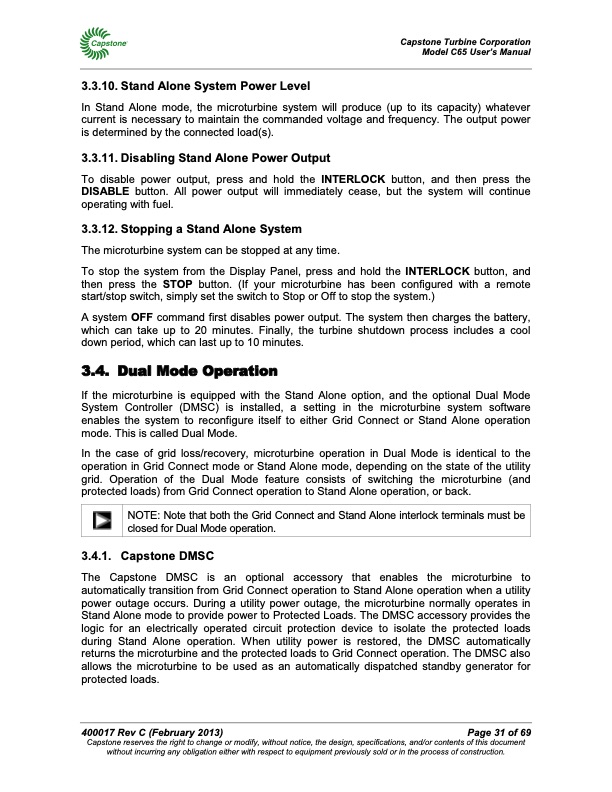

Capstone Turbine Corporation Model C65 User’s Manual 3.3.10. Stand Alone System Power Level In Stand Alone mode, the microturbine system will produce (up to its capacity) whatever current is necessary to maintain the commanded voltage and frequency. The output power is determined by the connected load(s). 3.3.11. Disabling Stand Alone Power Output To disable power output, press and hold the INTERLOCK button, and then press the DISABLE button. All power output will immediately cease, but the system will continue operating with fuel. 3.3.12. Stopping a Stand Alone System The microturbine system can be stopped at any time. To stop the system from the Display Panel, press and hold the INTERLOCK button, and then press the STOP button. (If your microturbine has been configured with a remote start/stop switch, simply set the switch to Stop or Off to stop the system.) A system OFF command first disables power output. The system then charges the battery, which can take up to 20 minutes. Finally, the turbine shutdown process includes a cool down period, which can last up to 10 minutes. 3.4. Dual Mode Operation If the microturbine is equipped with the Stand Alone option, and the optional Dual Mode System Controller (DMSC) is installed, a setting in the microturbine system software enables the system to reconfigure itself to either Grid Connect or Stand Alone operation mode. This is called Dual Mode. In the case of grid loss/recovery, microturbine operation in Dual Mode is identical to the operation in Grid Connect mode or Stand Alone mode, depending on the state of the utility grid. Operation of the Dual Mode feature consists of switching the microturbine (and protected loads) from Grid Connect operation to Stand Alone operation, or back. NOTE: Note that both the Grid Connect and Stand Alone interlock terminals must be closed for Dual Mode operation. 3.4.1. Capstone DMSC The Capstone DMSC is an optional accessory that enables the microturbine to automatically transition from Grid Connect operation to Stand Alone operation when a utility power outage occurs. During a utility power outage, the microturbine normally operates in Stand Alone mode to provide power to Protected Loads. The DMSC accessory provides the logic for an electrically operated circuit protection device to isolate the protected loads during Stand Alone operation. When utility power is restored, the DMSC automatically returns the microturbine and the protected loads to Grid Connect operation. The DMSC also allows the microturbine to be used as an automatically dispatched standby generator for protected loads. 400017 Rev C (February 2013) Page 31 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
