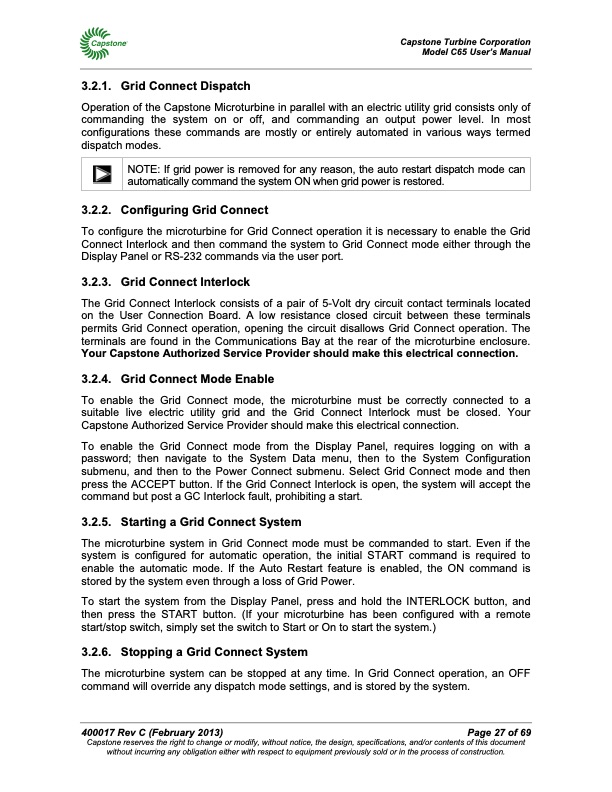

Capstone Turbine Corporation Model C65 User’s Manual 3.2.1. Grid Connect Dispatch Operation of the Capstone Microturbine in parallel with an electric utility grid consists only of commanding the system on or off, and commanding an output power level. In most configurations these commands are mostly or entirely automated in various ways termed dispatch modes. NOTE: If grid power is removed for any reason, the auto restart dispatch mode can automatically command the system ON when grid power is restored. 3.2.2. Configuring Grid Connect To configure the microturbine for Grid Connect operation it is necessary to enable the Grid Connect Interlock and then command the system to Grid Connect mode either through the Display Panel or RS-232 commands via the user port. 3.2.3. Grid Connect Interlock The Grid Connect Interlock consists of a pair of 5-Volt dry circuit contact terminals located on the User Connection Board. A low resistance closed circuit between these terminals permits Grid Connect operation, opening the circuit disallows Grid Connect operation. The terminals are found in the Communications Bay at the rear of the microturbine enclosure. Your Capstone Authorized Service Provider should make this electrical connection. 3.2.4. Grid Connect Mode Enable To enable the Grid Connect mode, the microturbine must be correctly connected to a suitable live electric utility grid and the Grid Connect Interlock must be closed. Your Capstone Authorized Service Provider should make this electrical connection. To enable the Grid Connect mode from the Display Panel, requires logging on with a password; then navigate to the System Data menu, then to the System Configuration submenu, and then to the Power Connect submenu. Select Grid Connect mode and then press the ACCEPT button. If the Grid Connect Interlock is open, the system will accept the command but post a GC Interlock fault, prohibiting a start. 3.2.5. Starting a Grid Connect System The microturbine system in Grid Connect mode must be commanded to start. Even if the system is configured for automatic operation, the initial START command is required to enable the automatic mode. If the Auto Restart feature is enabled, the ON command is stored by the system even through a loss of Grid Power. To start the system from the Display Panel, press and hold the INTERLOCK button, and then press the START button. (If your microturbine has been configured with a remote start/stop switch, simply set the switch to Start or On to start the system.) 3.2.6. Stopping a Grid Connect System The microturbine system can be stopped at any time. In Grid Connect operation, an OFF command will override any dispatch mode settings, and is stored by the system. 400017 Rev C (February 2013) Page 27 of 69 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
