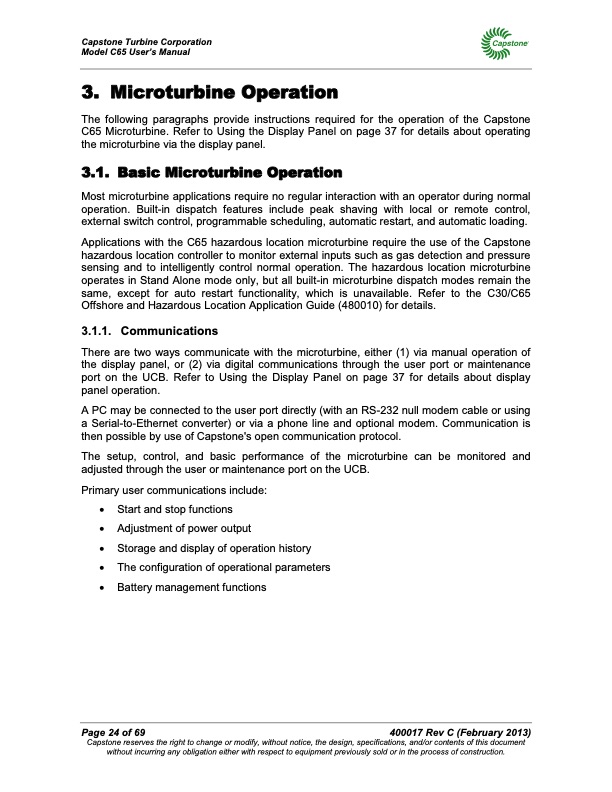

Capstone Turbine Corporation Model C65 User’s Manual 3. Microturbine Operation The following paragraphs provide instructions required for the operation of the Capstone C65 Microturbine. Refer to Using the Display Panel on page 37 for details about operating the microturbine via the display panel. 3.1. Basic Microturbine Operation Most microturbine applications require no regular interaction with an operator during normal operation. Built-in dispatch features include peak shaving with local or remote control, external switch control, programmable scheduling, automatic restart, and automatic loading. Applications with the C65 hazardous location microturbine require the use of the Capstone hazardous location controller to monitor external inputs such as gas detection and pressure sensing and to intelligently control normal operation. The hazardous location microturbine operates in Stand Alone mode only, but all built-in microturbine dispatch modes remain the same, except for auto restart functionality, which is unavailable. Refer to the C30/C65 Offshore and Hazardous Location Application Guide (480010) for details. 3.1.1. Communications There are two ways communicate with the microturbine, either (1) via manual operation of the display panel, or (2) via digital communications through the user port or maintenance port on the UCB. Refer to Using the Display Panel on page 37 for details about display panel operation. A PC may be connected to the user port directly (with an RS-232 null modem cable or using a Serial-to-Ethernet converter) or via a phone line and optional modem. Communication is then possible by use of Capstone's open communication protocol. The setup, control, and basic performance of the microturbine can be monitored and adjusted through the user or maintenance port on the UCB. Primary user communications include: • Start and stop functions • Adjustment of power output • Storage and display of operation history • The configuration of operational parameters • Battery management functions Page 24 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
