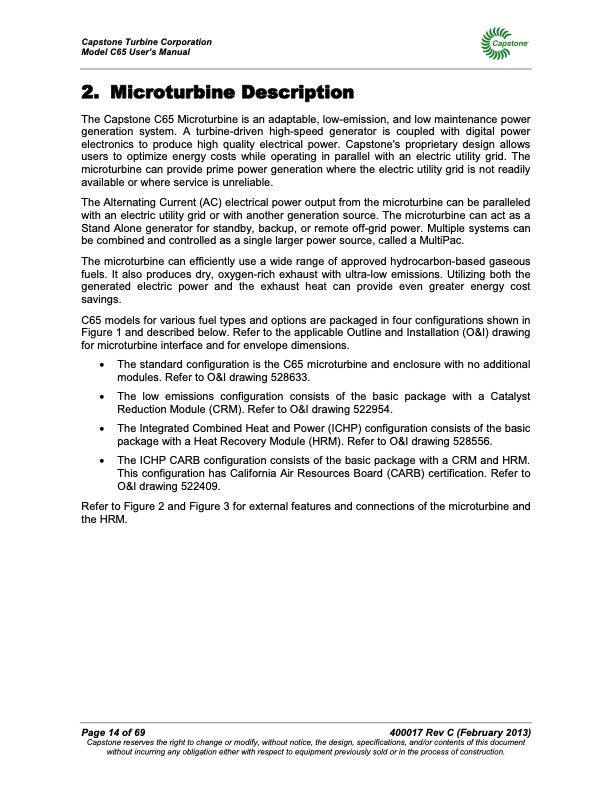

Capstone Turbine Corporation Model C65 User’s Manual 2. Microturbine Description The Capstone C65 Microturbine is an adaptable, low-emission, and low maintenance power generation system. A turbine-driven high-speed generator is coupled with digital power electronics to produce high quality electrical power. Capstone's proprietary design allows users to optimize energy costs while operating in parallel with an electric utility grid. The microturbine can provide prime power generation where the electric utility grid is not readily available or where service is unreliable. The Alternating Current (AC) electrical power output from the microturbine can be paralleled with an electric utility grid or with another generation source. The microturbine can act as a Stand Alone generator for standby, backup, or remote off-grid power. Multiple systems can be combined and controlled as a single larger power source, called a MultiPac. The microturbine can efficiently use a wide range of approved hydrocarbon-based gaseous fuels. It also produces dry, oxygen-rich exhaust with ultra-low emissions. Utilizing both the generated electric power and the exhaust heat can provide even greater energy cost savings. C65 models for various fuel types and options are packaged in four configurations shown in Figure 1 and described below. Refer to the applicable Outline and Installation (O&I) drawing for microturbine interface and for envelope dimensions. • The standard configuration is the C65 microturbine and enclosure with no additional modules. Refer to O&I drawing 528633. • The low emissions configuration consists of the basic package with a Catalyst Reduction Module (CRM). Refer to O&I drawing 522954. • The Integrated Combined Heat and Power (ICHP) configuration consists of the basic package with a Heat Recovery Module (HRM). Refer to O&I drawing 528556. • The ICHP CARB configuration consists of the basic package with a CRM and HRM. This configuration has California Air Resources Board (CARB) certification. Refer to O&I drawing 522409. Refer to Figure 2 and Figure 3 for external features and connections of the microturbine and the HRM. Page 14 of 69 400017 Rev C (February 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 User's Manual
