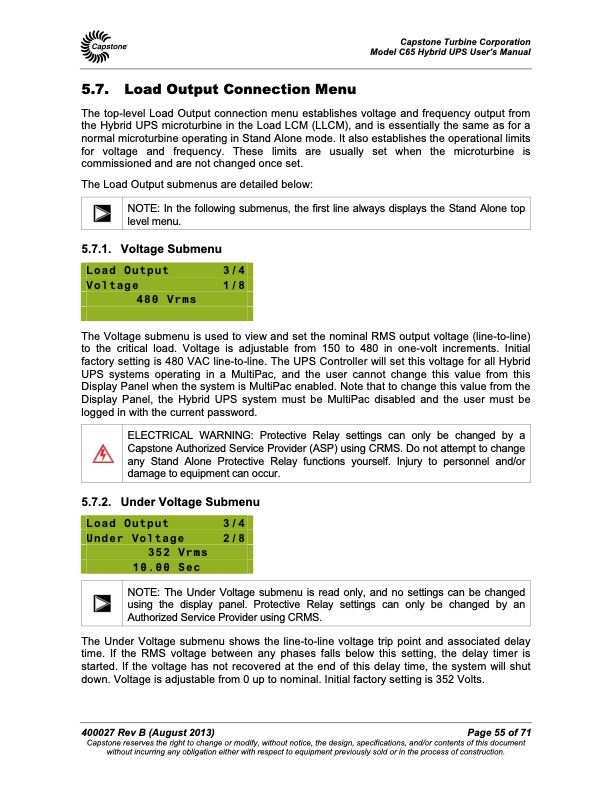

The top-level Load Output connection menu establishes voltage and frequency output from the Hybrid UPS microturbine in the Load LCM (LLCM), and is essentially the same as for a normal microturbine operating in Stand Alone mode. It also establishes the operational limits for voltage and frequency. These limits are usually set when the microturbine is commissioned and are not changed once set. The Load Output submenus are detailed below: NOTE: In the following submenus, the first line always displays the Stand Alone top level menu. 5.7.1. Voltage Submenu Load Output 3/4 Voltage 1/8 480 Vrms The Voltage submenu is used to view and set the nominal RMS output voltage (line-to-line) to the critical load. Voltage is adjustable from 150 to 480 in one-volt increments. Initial factory setting is 480 VAC line-to-line. The UPS Controller will set this voltage for all Hybrid UPS systems operating in a MultiPac, and the user cannot change this value from this Display Panel when the system is MultiPac enabled. Note that to change this value from the Display Panel, the Hybrid UPS system must be MultiPac disabled and the user must be logged in with the current password. 5.7.2. Under Voltage Submenu Load Output 3/4 Under Voltage 2/8 352 Vrms 10.00 Sec The Under Voltage submenu shows the line-to-line voltage trip point and associated delay time. If the RMS voltage between any phases falls below this setting, the delay timer is started. If the voltage has not recovered at the end of this delay time, the system will shut down. Voltage is adjustable from 0 up to nominal. Initial factory setting is 352 Volts. 400027 Rev B (August 2013) Page 55 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 5.7. Load Output Connection Menu ELECTRICAL WARNING: Protective Relay settings can only be changed by a Capstone Authorized Service Provider (ASP) using CRMS. Do not attempt to change any Stand Alone Protective Relay functions yourself. Injury to personnel and/or damage to equipment can occur. NOTE: The Under Voltage submenu is read only, and no settings can be changed using the display panel. Protective Relay settings can only be changed by an Authorized Service Provider using CRMS.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
