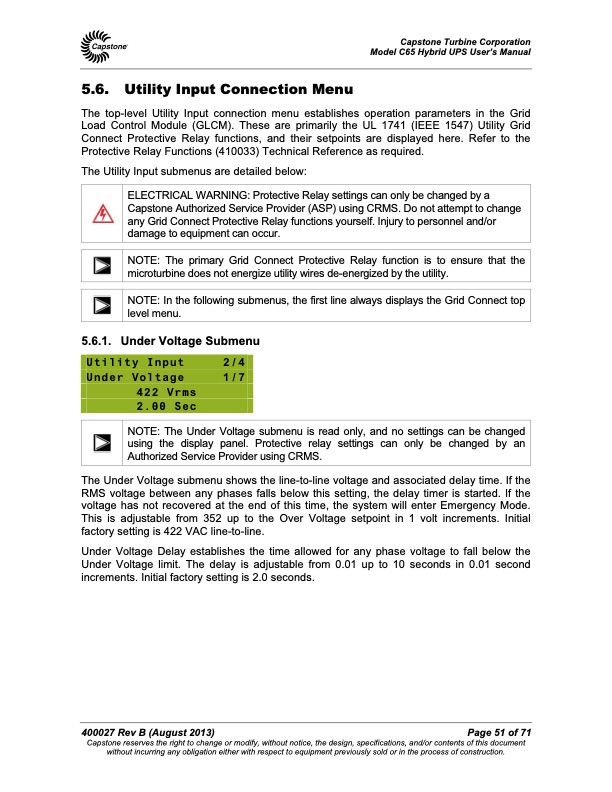

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 5.6. Utility Input Connection Menu The top-level Utility Input connection menu establishes operation parameters in the Grid Load Control Module (GLCM). These are primarily the UL 1741 (IEEE 1547) Utility Grid Connect Protective Relay functions, and their setpoints are displayed here. Refer to the Protective Relay Functions (410033) Technical Reference as required. The Utility Input submenus are detailed below: NOTE: The primary Grid Connect Protective Relay function is to ensure that the microturbine does not energize utility wires de-energized by the utility. NOTE: In the following submenus, the first line always displays the Grid Connect top level menu. 5.6.1. Under Voltage Submenu Utility Input 2/4 Under Voltage 1/7 422 Vrms 2.00 Sec The Under Voltage submenu shows the line-to-line voltage and associated delay time. If the RMS voltage between any phases falls below this setting, the delay timer is started. If the voltage has not recovered at the end of this time, the system will enter Emergency Mode. This is adjustable from 352 up to the Over Voltage setpoint in 1 volt increments. Initial factory setting is 422 VAC line-to-line. Under Voltage Delay establishes the time allowed for any phase voltage to fall below the Under Voltage limit. The delay is adjustable from 0.01 up to 10 seconds in 0.01 second increments. Initial factory setting is 2.0 seconds. ELECTRICAL WARNING: Protective Relay settings can only be changed by a Capstone Authorized Service Provider (ASP) using CRMS. Do not attempt to change any Grid Connect Protective Relay functions yourself. Injury to personnel and/or damage to equipment can occur. NOTE: The Under Voltage submenu is read only, and no settings can be changed using the display panel. Protective relay settings can only be changed by an Authorized Service Provider using CRMS. 400027 Rev B (August 2013) Page 51 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
