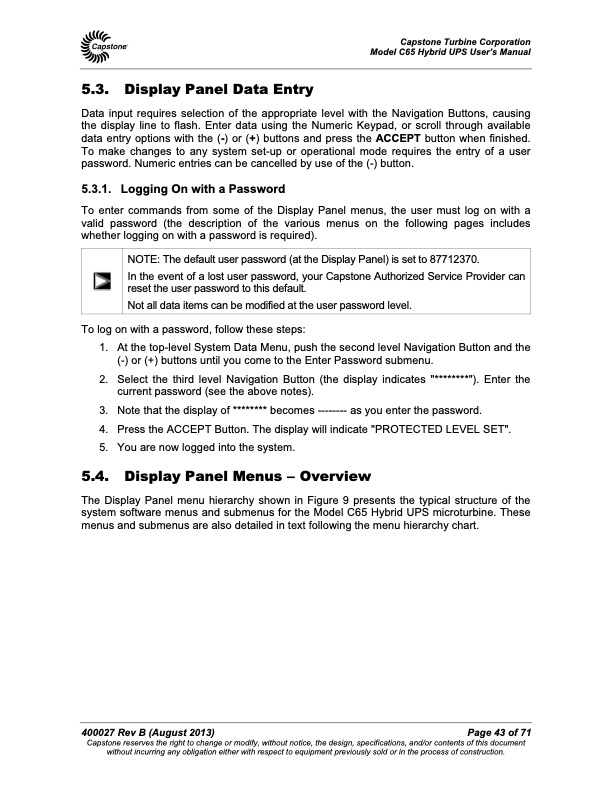

Text from PDF Page: 043
Data input requires selection of the appropriate level with the Navigation Buttons, causing the display line to flash. Enter data using the Numeric Keypad, or scroll through available data entry options with the (-) or (+) buttons and press the ACCEPT button when finished. To make changes to any system set-up or operational mode requires the entry of a user password. Numeric entries can be cancelled by use of the (-) button. 5.3.1. Logging On with a Password To enter commands from some of the Display Panel menus, the user must log on with a valid password (the description of the various menus on the following pages includes whether logging on with a password is required). To log on with a password, follow these steps: 1. At the top-level System Data Menu, push the second level Navigation Button and the (-) or (+) buttons until you come to the Enter Password submenu. 2. Select the third level Navigation Button (the display indicates "********"). Enter the current password (see the above notes). 3. Note that the display of ******** becomes -------- as you enter the password. 4. Press the ACCEPT Button. The display will indicate "PROTECTED LEVEL SET". 5. You are now logged into the system. 5.4. Display Panel Menus – Overview The Display Panel menu hierarchy shown in Figure 9 presents the typical structure of the system software menus and submenus for the Model C65 Hybrid UPS microturbine. These menus and submenus are also detailed in text following the menu hierarchy chart. Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 5.3. Display Panel Data Entry NOTE: The default user password (at the Display Panel) is set to 87712370. In the event of a lost user password, your Capstone Authorized Service Provider can reset the user password to this default. Not all data items can be modified at the user password level. 400027 Rev B (August 2013) Page 43 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
PDF Search Title:
Capstone MicroTurbine Model C65 Hybrid UPS User's ManualOriginal File Name Searched:
400027B_UM_C65_HYBRID_UPS.pdfDIY PDF Search: Google It | Yahoo | Bing
