PDF Publication Title:
Text from PDF Page: 040

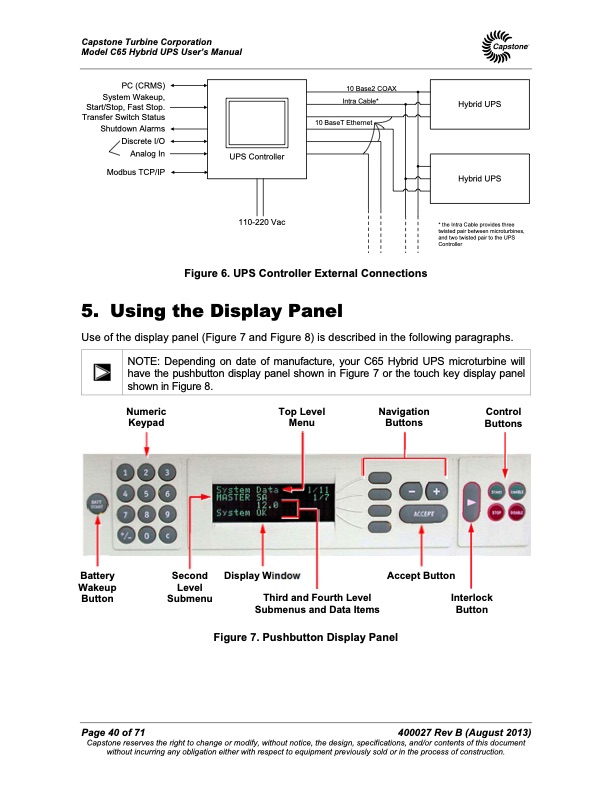

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual PC (CRMS) System Wakeup, Start/Stop, Fast Stop. Transfer Switch Status Shutdown Alarms Discrete I/O Analog In Modbus TCP/IP 10 Base2 COAX 10 BaseT Ethernet Intra Cable* UPS Controller Hybrid UPS 110-220 Vac * the Intra Cable provides three twisted pair between microturbines, and two twisted pair to the UPS Controller Figure 6. UPS Controller External Connections 5. Using the Display Panel Use of the display panel (Figure 7 and Figure 8) is described in the following paragraphs. NOTE: Depending on date of manufacture, your C65 Hybrid UPS microturbine will have the pushbutton display panel shown in Figure 7 or the touch key display panel shown in Figure 8. Numeric Keypad Battery Wakeup Button Top Level Menu Display Window Third and Fourth Level Submenus and Data Items Figure 7. Pushbutton Display Panel Second Level Submenu Navigation Control Buttons Buttons Accept Button Interlock Button Page 40 of 71 400027 Rev B (August 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Hybrid UPSPDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
