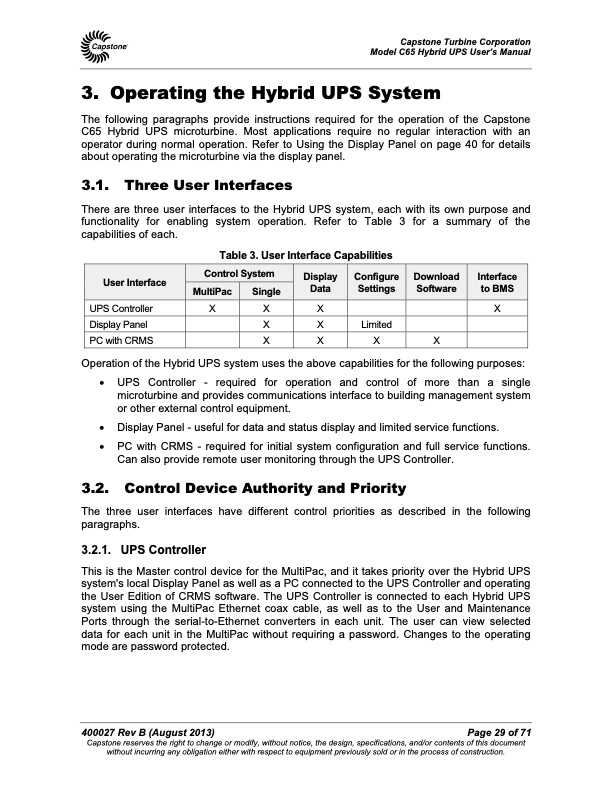

Capstone Turbine Corporation Model C65 Hybrid UPS User’s Manual 3. Operating the Hybrid UPS System The following paragraphs provide instructions required for the operation of the Capstone C65 Hybrid UPS microturbine. Most applications require no regular interaction with an operator during normal operation. Refer to Using the Display Panel on page 40 for details about operating the microturbine via the display panel. 3.1. Three User Interfaces There are three user interfaces to the Hybrid UPS system, each with its own purpose and functionality for enabling system operation. Refer to Table 3 for a summary of the capabilities of each. Table 3. User Interface Capabilities UPS Controller X X X X Display Panel X X Limited PCwithCRMS X X X X Operation of the Hybrid UPS system uses the above capabilities for the following purposes: UPS Controller - required for operation and control of more than a single microturbine and provides communications interface to building management system or other external control equipment. Display Panel - useful for data and status display and limited service functions. PC with CRMS - required for initial system configuration and full service functions. Can also provide remote user monitoring through the UPS Controller. 3.2. Control Device Authority and Priority The three user interfaces have different control priorities as described in the following paragraphs. 3.2.1. UPS Controller This is the Master control device for the MultiPac, and it takes priority over the Hybrid UPS system's local Display Panel as well as a PC connected to the UPS Controller and operating the User Edition of CRMS software. The UPS Controller is connected to each Hybrid UPS system using the MultiPac Ethernet coax cable, as well as to the User and Maintenance Ports through the serial-to-Ethernet converters in each unit. The user can view selected data for each unit in the MultiPac without requiring a password. Changes to the operating mode are password protected. 400027 Rev B (August 2013) Page 29 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. User Interface Control System Display Data Configure Settings Download Software Interface to BMS MultiPac SinglePDF Image | Capstone MicroTurbine Model C65 Hybrid UPS User's Manual
