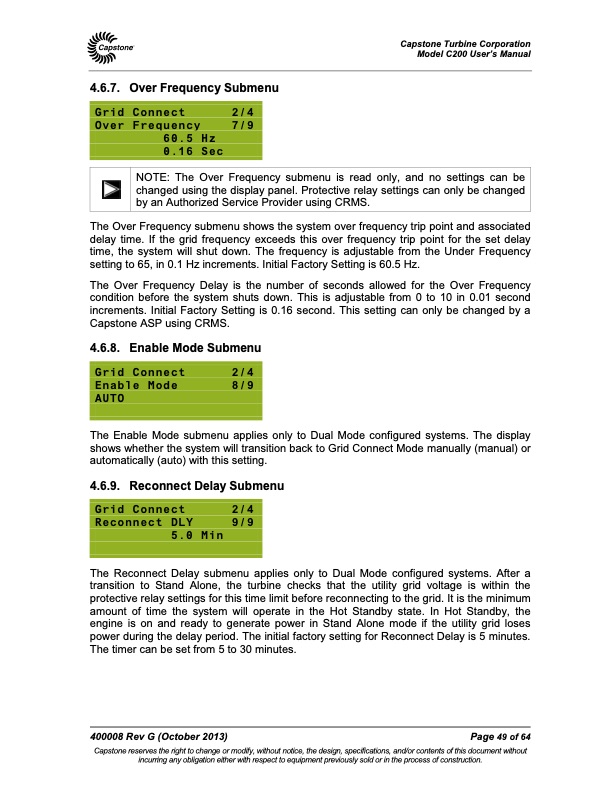

Capstone Turbine Corporation Model C200 User’s Manual 4.6.7. Over Frequency Submenu Grid Connect 2/4 Over Frequency 7/9 60.5 Hz 0.16 Sec NOTE: The Over Frequency submenu is read only, and no settings can be changed using the display panel. Protective relay settings can only be changed by an Authorized Service Provider using CRMS. The Over Frequency submenu shows the system over frequency trip point and associated delay time. If the grid frequency exceeds this over frequency trip point for the set delay time, the system will shut down. The frequency is adjustable from the Under Frequency setting to 65, in 0.1 Hz increments. Initial Factory Setting is 60.5 Hz. The Over Frequency Delay is the number of seconds allowed for the Over Frequency condition before the system shuts down. This is adjustable from 0 to 10 in 0.01 second increments. Initial Factory Setting is 0.16 second. This setting can only be changed by a Capstone ASP using CRMS. 4.6.8. Enable Mode Submenu The Enable Mode submenu applies only to Dual Mode configured systems. The display shows whether the system will transition back to Grid Connect Mode manually (manual) or automatically (auto) with this setting. 4.6.9. Reconnect Delay Submenu The Reconnect Delay submenu applies only to Dual Mode configured systems. After a transition to Stand Alone, the turbine checks that the utility grid voltage is within the protective relay settings for this time limit before reconnecting to the grid. It is the minimum amount of time the system will operate in the Hot Standby state. In Hot Standby, the engine is on and ready to generate power in Stand Alone mode if the utility grid loses power during the delay period. The initial factory setting for Reconnect Delay is 5 minutes. The timer can be set from 5 to 30 minutes. 400008 Rev G (October 2013) Page 49 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Grid Connect 2/4 Enable Mode 8/9 AUTO Grid Connect 2/4 Reconnect DLY 9/9 5.0 MinPDF Image | Capstone MicroTurbine Model C200 User's Manual
