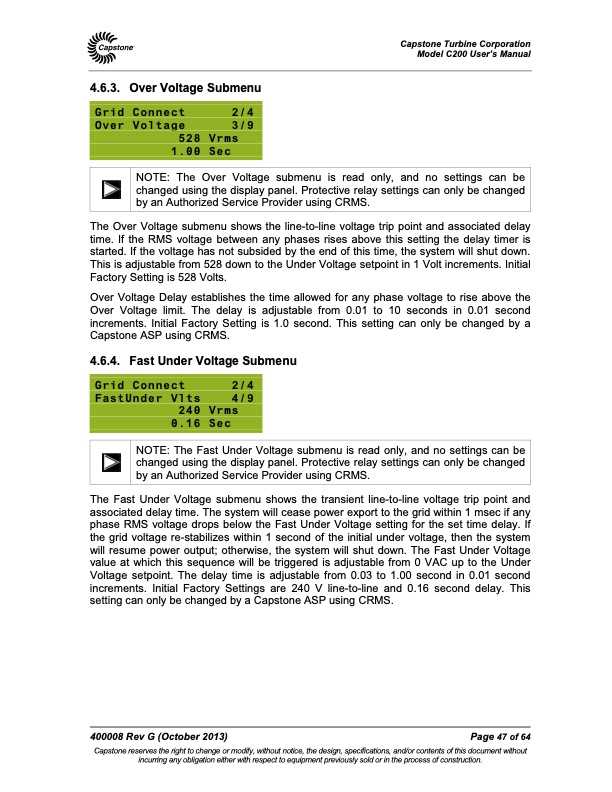

4.6.3. Over Voltage Submenu Capstone Turbine Corporation Model C200 User’s Manual Grid Connect 2/4 Over Voltage 3/9 528 Vrms 1.00 Sec NOTE: The Over Voltage submenu is read only, and no settings can be changed using the display panel. Protective relay settings can only be changed by an Authorized Service Provider using CRMS. The Over Voltage submenu shows the line-to-line voltage trip point and associated delay time. If the RMS voltage between any phases rises above this setting the delay timer is started. If the voltage has not subsided by the end of this time, the system will shut down. This is adjustable from 528 down to the Under Voltage setpoint in 1 Volt increments. Initial Factory Setting is 528 Volts. Over Voltage Delay establishes the time allowed for any phase voltage to rise above the Over Voltage limit. The delay is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is 1.0 second. This setting can only be changed by a Capstone ASP using CRMS. 4.6.4. Fast Under Voltage Submenu The Fast Under Voltage submenu shows the transient line-to-line voltage trip point and associated delay time. The system will cease power export to the grid within 1 msec if any phase RMS voltage drops below the Fast Under Voltage setting for the set time delay. If the grid voltage re-stabilizes within 1 second of the initial under voltage, then the system will resume power output; otherwise, the system will shut down. The Fast Under Voltage value at which this sequence will be triggered is adjustable from 0 VAC up to the Under Voltage setpoint. The delay time is adjustable from 0.03 to 1.00 second in 0.01 second increments. Initial Factory Settings are 240 V line-to-line and 0.16 second delay. This setting can only be changed by a Capstone ASP using CRMS. Grid Connect 2/4 FastUnder Vlts 4/9 240 Vrms 0.16 Sec NOTE: The Fast Under Voltage submenu is read only, and no settings can be changed using the display panel. Protective relay settings can only be changed by an Authorized Service Provider using CRMS. 400008 Rev G (October 2013) Page 47 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C200 User's Manual
