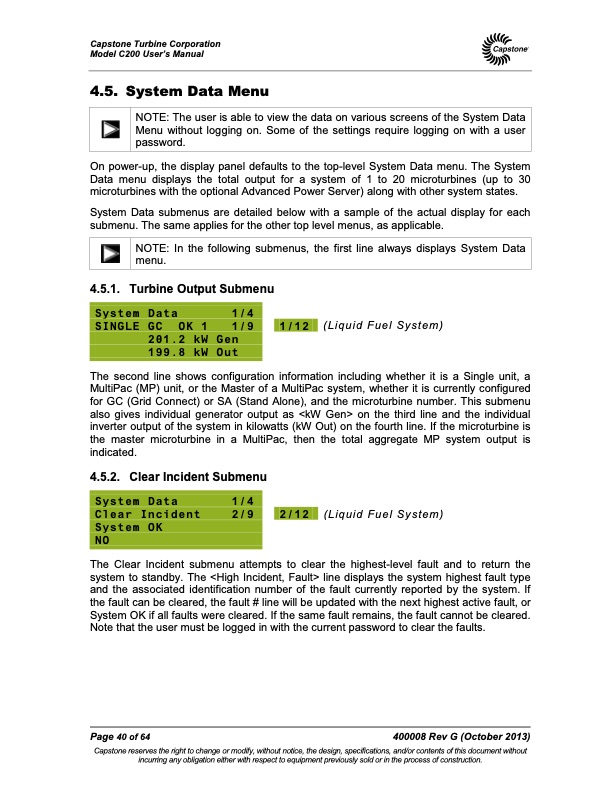

Capstone Turbine Corporation Model C200 User’s Manual 4.5. System Data Menu On power-up, the display panel defaults to the top-level System Data menu. The System Data menu displays the total output for a system of 1 to 20 microturbines (up to 30 microturbines with the optional Advanced Power Server) along with other system states. System Data submenus are detailed below with a sample of the actual display for each submenu. The same applies for the other top level menus, as applicable. NOTE: In the following submenus, the first line always displays System Data menu. 4.5.1. Turbine Output Submenu 1/12 (Liquid Fuel System) The second line shows configuration information including whether it is a Single unit, a MultiPac (MP) unit, or the Master of a MultiPac system, whether it is currently configured for GC (Grid Connect) or SA (Stand Alone), and the microturbine number. This submenu also gives individual generator output as on the third line and the individual inverter output of the system in kilowatts (kW Out) on the fourth line. If the microturbine is the master microturbine in a MultiPac, then the total aggregate MP system output is indicated. 4.5.2. Clear Incident Submenu 2/12 (Liquid Fuel System) The Clear Incident submenu attempts to clear the highest-level fault and to return the system to standby. The line displays the system highest fault type and the associated identification number of the fault currently reported by the system. If the fault can be cleared, the fault # line will be updated with the next highest active fault, or System OK if all faults were cleared. If the same fault remains, the fault cannot be cleared. Note that the user must be logged in with the current password to clear the faults. Page 40 of 64 400008 Rev G (October 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE: The user is able to view the data on various screens of the System Data Menu without logging on. Some of the settings require logging on with a user password. System Data 1/4 SINGLE GC OK 1 1/9 201.2 kW Gen 199.8 kW Out System Data 1/4 Clear Incident 2/9 System OK NO
