Text from PDF Page: 036

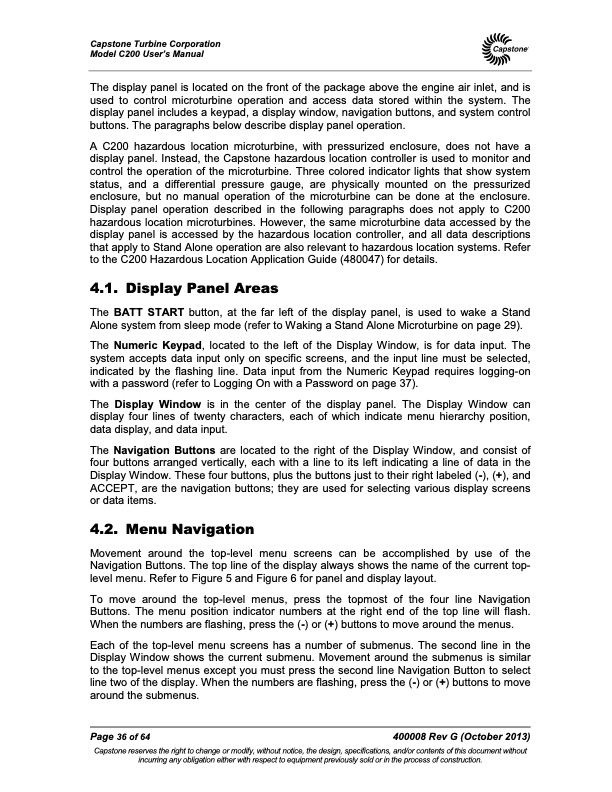

Capstone Turbine Corporation Model C200 User’s Manual The display panel is located on the front of the package above the engine air inlet, and is used to control microturbine operation and access data stored within the system. The display panel includes a keypad, a display window, navigation buttons, and system control buttons. The paragraphs below describe display panel operation. A C200 hazardous location microturbine, with pressurized enclosure, does not have a display panel. Instead, the Capstone hazardous location controller is used to monitor and control the operation of the microturbine. Three colored indicator lights that show system status, and a differential pressure gauge, are physically mounted on the pressurized enclosure, but no manual operation of the microturbine can be done at the enclosure. Display panel operation described in the following paragraphs does not apply to C200 hazardous location microturbines. However, the same microturbine data accessed by the display panel is accessed by the hazardous location controller, and all data descriptions that apply to Stand Alone operation are also relevant to hazardous location systems. Refer to the C200 Hazardous Location Application Guide (480047) for details. 4.1. Display Panel Areas The BATT START button, at the far left of the display panel, is used to wake a Stand Alone system from sleep mode (refer to Waking a Stand Alone Microturbine on page 29). The Numeric Keypad, located to the left of the Display Window, is for data input. The system accepts data input only on specific screens, and the input line must be selected, indicated by the flashing line. Data input from the Numeric Keypad requires logging-on with a password (refer to Logging On with a Password on page 37). The Display Window is in the center of the display panel. The Display Window can display four lines of twenty characters, each of which indicate menu hierarchy position, data display, and data input. The Navigation Buttons are located to the right of the Display Window, and consist of four buttons arranged vertically, each with a line to its left indicating a line of data in the Display Window. These four buttons, plus the buttons just to their right labeled (-), (+), and ACCEPT, are the navigation buttons; they are used for selecting various display screens or data items. 4.2. Menu Navigation Movement around the top-level menu screens can be accomplished by use of the Navigation Buttons. The top line of the display always shows the name of the current top- level menu. Refer to Figure 5 and Figure 6 for panel and display layout. To move around the top-level menus, press the topmost of the four line Navigation Buttons. The menu position indicator numbers at the right end of the top line will flash. When the numbers are flashing, press the (-) or (+) buttons to move around the menus. Each of the top-level menu screens has a number of submenus. The second line in the Display Window shows the current submenu. Movement around the submenus is similar to the top-level menus except you must press the second line Navigation Button to select line two of the display. When the numbers are flashing, press the (-) or (+) buttons to move around the submenus. Page 36 of 64 400008 Rev G (October 2013) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C200 User's Manual
