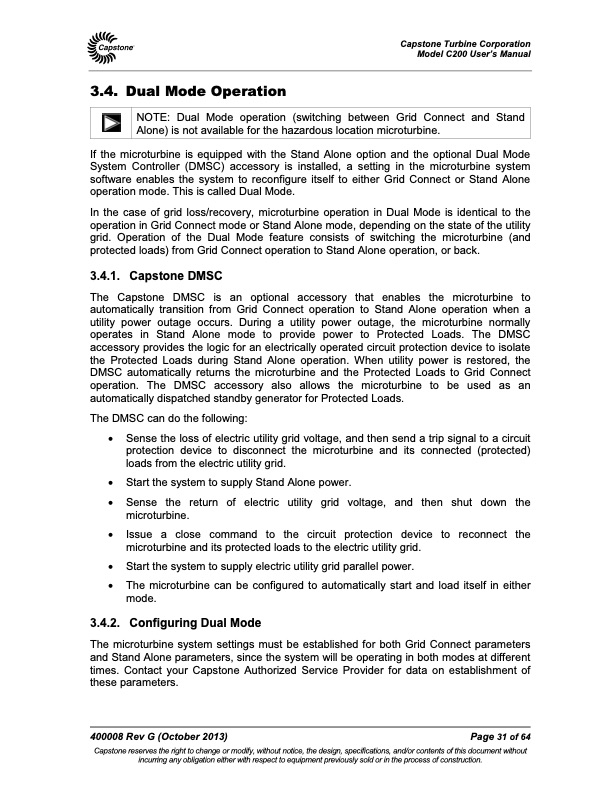

3.4. Dual Mode Operation NOTE: Dual Mode operation (switching between Grid Connect and Stand Alone) is not available for the hazardous location microturbine. If the microturbine is equipped with the Stand Alone option and the optional Dual Mode System Controller (DMSC) accessory is installed, a setting in the microturbine system software enables the system to reconfigure itself to either Grid Connect or Stand Alone operation mode. This is called Dual Mode. In the case of grid loss/recovery, microturbine operation in Dual Mode is identical to the operation in Grid Connect mode or Stand Alone mode, depending on the state of the utility grid. Operation of the Dual Mode feature consists of switching the microturbine (and protected loads) from Grid Connect operation to Stand Alone operation, or back. 3.4.1. Capstone DMSC The Capstone DMSC is an optional accessory that enables the microturbine to automatically transition from Grid Connect operation to Stand Alone operation when a utility power outage occurs. During a utility power outage, the microturbine normally operates in Stand Alone mode to provide power to Protected Loads. The DMSC accessory provides the logic for an electrically operated circuit protection device to isolate the Protected Loads during Stand Alone operation. When utility power is restored, the DMSC automatically returns the microturbine and the Protected Loads to Grid Connect operation. The DMSC accessory also allows the microturbine to be used as an automatically dispatched standby generator for Protected Loads. The DMSC can do the following: • Sense the loss of electric utility grid voltage, and then send a trip signal to a circuit protection device to disconnect the microturbine and its connected (protected) loads from the electric utility grid. • Start the system to supply Stand Alone power. • Sense the return of electric utility grid voltage, and then shut down the microturbine. • Issue a close command to the circuit protection device to reconnect the microturbine and its protected loads to the electric utility grid. • Start the system to supply electric utility grid parallel power. • The microturbine can be configured to automatically start and load itself in either mode. 3.4.2. Configuring Dual Mode The microturbine system settings must be established for both Grid Connect parameters and Stand Alone parameters, since the system will be operating in both modes at different times. Contact your Capstone Authorized Service Provider for data on establishment of these parameters. 400008 Rev G (October 2013) Page 31 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Capstone Turbine Corporation Model C200 User’s ManualPDF Image | Capstone MicroTurbine Model C200 User's Manual
