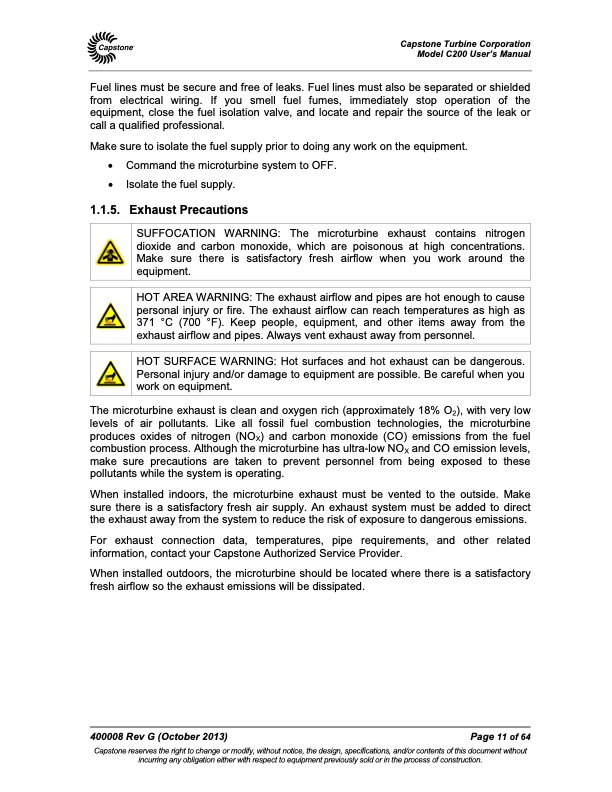

Capstone Turbine Corporation Model C200 User’s Manual Fuel lines must be secure and free of leaks. Fuel lines must also be separated or shielded from electrical wiring. If you smell fuel fumes, immediately stop operation of the equipment, close the fuel isolation valve, and locate and repair the source of the leak or call a qualified professional. Make sure to isolate the fuel supply prior to doing any work on the equipment. • • 1.1.5. Command the microturbine system to OFF. Isolate the fuel supply. Exhaust Precautions SUFFOCATION WARNING: The microturbine exhaust contains nitrogen dioxide and carbon monoxide, which are poisonous at high concentrations. Make sure there is satisfactory fresh airflow when you work around the equipment. HOT AREA WARNING: The exhaust airflow and pipes are hot enough to cause personal injury or fire. The exhaust airflow can reach temperatures as high as 371 °C (700 °F). Keep people, equipment, and other items away from the exhaust airflow and pipes. Always vent exhaust away from personnel. HOT SURFACE WARNING: Hot surfaces and hot exhaust can be dangerous. Personal injury and/or damage to equipment are possible. Be careful when you work on equipment. The microturbine exhaust is clean and oxygen rich (approximately 18% O2), with very low levels of air pollutants. Like all fossil fuel combustion technologies, the microturbine produces oxides of nitrogen (NOX) and carbon monoxide (CO) emissions from the fuel combustion process. Although the microturbine has ultra-low NOX and CO emission levels, make sure precautions are taken to prevent personnel from being exposed to these pollutants while the system is operating. When installed indoors, the microturbine exhaust must be vented to the outside. Make sure there is a satisfactory fresh air supply. An exhaust system must be added to direct the exhaust away from the system to reduce the risk of exposure to dangerous emissions. For exhaust connection data, temperatures, pipe requirements, and other related information, contact your Capstone Authorized Service Provider. When installed outdoors, the microturbine should be located where there is a satisfactory fresh airflow so the exhaust emissions will be dissipated. 400008 Rev G (October 2013) Page 11 of 64 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone MicroTurbine Model C200 User's Manual
