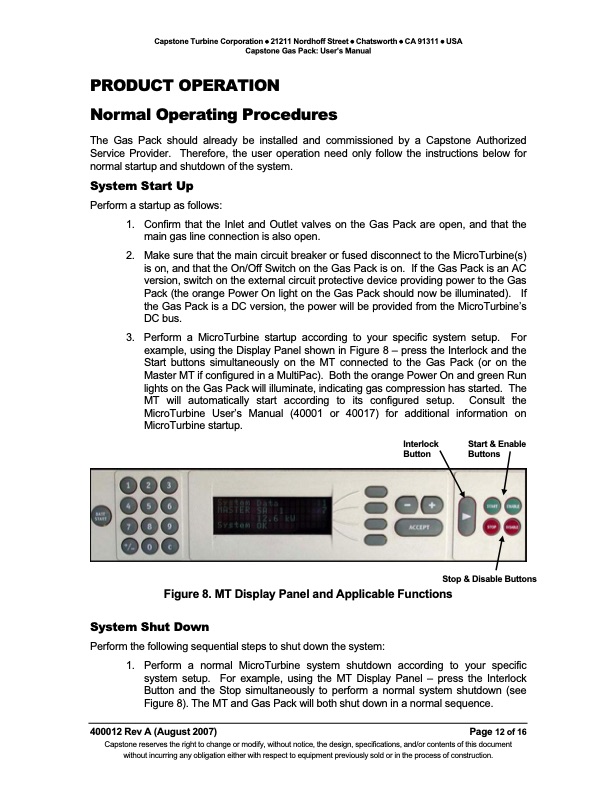

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: User’s Manual PRODUCT OPERATION Normal Operating Procedures The Gas Pack should already be installed and commissioned by a Capstone Authorized Service Provider. Therefore, the user operation need only follow the instructions below for normal startup and shutdown of the system. System Start Up Perform a startup as follows: 1. Confirm that the Inlet and Outlet valves on the Gas Pack are open, and that the main gas line connection is also open. 2. Make sure that the main circuit breaker or fused disconnect to the MicroTurbine(s) is on, and that the On/Off Switch on the Gas Pack is on. If the Gas Pack is an AC version, switch on the external circuit protective device providing power to the Gas Pack (the orange Power On light on the Gas Pack should now be illuminated). If the Gas Pack is a DC version, the power will be provided from the MicroTurbine’s DC bus. 3. Perform a MicroTurbine startup according to your specific system setup. For example, using the Display Panel shown in Figure 8 – press the Interlock and the Start buttons simultaneously on the MT connected to the Gas Pack (or on the Master MT if configured in a MultiPac). Both the orange Power On and green Run lights on the Gas Pack will illuminate, indicating gas compression has started. The MT will automatically start according to its configured setup. Consult the MicroTurbine User’s Manual (40001 or 40017) for additional information on MicroTurbine startup. Interlock Start & Enable Button Buttons Stop & Disable Buttons Figure 8. MT Display Panel and Applicable Functions System Shut Down Perform the following sequential steps to shut down the system: 1. Perform a normal MicroTurbine system shutdown according to your specific system setup. For example, using the MT Display Panel – press the Interlock Button and the Stop simultaneously to perform a normal system shutdown (see Figure 8). The MT and Gas Pack will both shut down in a normal sequence. 400012 Rev A (August 2007) Page 12 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE GAS PACK USER’S MANUAL
