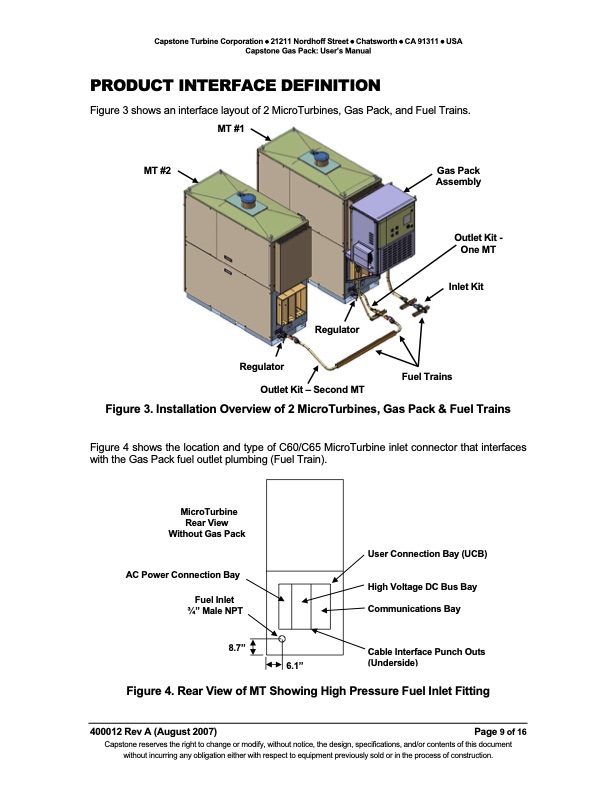

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: User’s Manual PRODUCT INTERFACE DEFINITION Figure 3 shows an interface layout of 2 MicroTurbines, Gas Pack, and Fuel Trains. MT #2 Gas Pack Assembly Outlet Kit - One MT Inlet Kit Fuel Trains MT #1 Regulator Outlet Kit – Second MT Figure 3. Installation Overview of 2 MicroTurbines, Gas Pack & Fuel Trains Figure 4 shows the location and type of C60/C65 MicroTurbine inlet connector that interfaces with the Gas Pack fuel outlet plumbing (Fuel Train). MicroTurbine Rear View Without Gas Pack AC Power Connection Bay Fuel Inlet 3⁄4” Male NPT 8.7” 6.1” Figure 4. Rear View of MT Showing High Pressure Fuel Inlet Fitting 400012 Rev A (August 2007) Page 9 of 16 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Regulator User Connection Bay (UCB) High Voltage DC Bus Bay Communications Bay Cable Interface Punch Outs (Underside)PDF Image | CAPSTONE GAS PACK USER’S MANUAL
