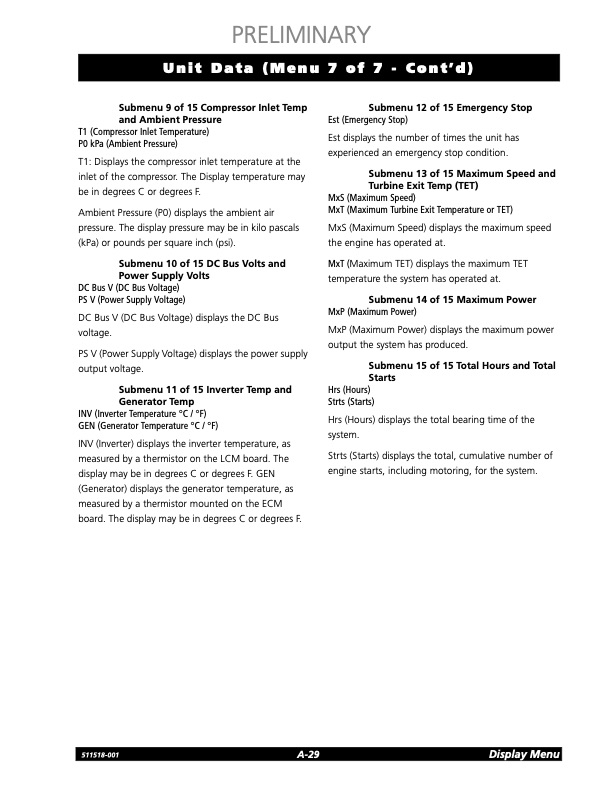

PRELIMINARY Unit Data (Menu 7 of 7 - Cont’d) Submenu 9 of 15 Compressor Inlet Temp and Ambient Pressure T1 (Compressor Inlet Temperature) P0 kPa (Ambient Pressure) T1: Displays the compressor inlet temperature at the inlet of the compressor. The Display temperature may be in degrees C or degrees F. Ambient Pressure (P0) displays the ambient air pressure. The display pressure may be in kilo pascals (kPa) or pounds per square inch (psi). Submenu 10 of 15 DC Bus Volts and Power Supply Volts DC Bus V (DC Bus Voltage) PS V (Power Supply Voltage) DC Bus V (DC Bus Voltage) displays the DC Bus voltage. PS V (Power Supply Voltage) displays the power supply output voltage. Submenu 11 of 15 Inverter Temp and Generator Temp INV (Inverter Temperature °C / °F) GEN (Generator Temperature °C / °F) INV (Inverter) displays the inverter temperature, as measured by a thermistor on the LCM board. The display may be in degrees C or degrees F. GEN (Generator) displays the generator temperature, as measured by a thermistor mounted on the ECM board. The display may be in degrees C or degrees F. Submenu 12 of 15 Emergency Stop Est (Emergency Stop) Est displays the number of times the unit has experienced an emergency stop condition. Submenu 13 of 15 Maximum Speed and Turbine Exit Temp (TET) MxS (Maximum Speed) MxT (Maximum Turbine Exit Temperature or TET) MxS (Maximum Speed) displays the maximum speed the engine has operated at. MxT (Maximum TET) displays the maximum TET temperature the system has operated at. Submenu 14 of 15 Maximum Power MxP (Maximum Power) MxP (Maximum Power) displays the maximum power output the system has produced. Submenu 15 of 15 Total Hours and Total Starts Hrs (Hours) Strts (Starts) Hrs (Hours) displays the total bearing time of the system. Strts (Starts) displays the total, cumulative number of engine starts, including motoring, for the system. 511518-001 A-29 Display MenuPDF Image | CAPSTONE 60 SYSTEM OPERATION
