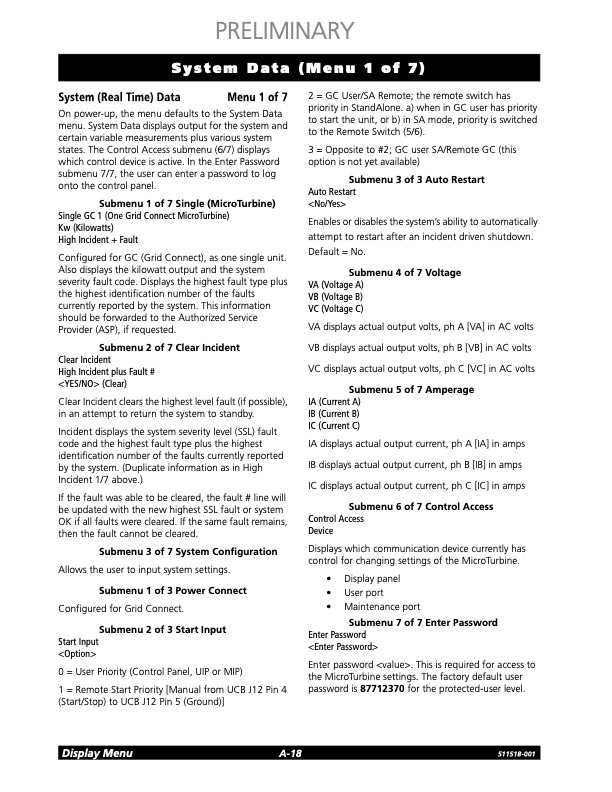

PRELIMINARY System Data (Menu 1 of 7) System (Real Time) Data Menu 1 of 7 On power-up, the menu defaults to the System Data menu. System Data displays output for the system and certain variable measurements plus various system states. The Control Access submenu (6/7) displays which control device is active. In the Enter Password submenu 7/7, the user can enter a password to log onto the control panel. Submenu 1 of 7 Single (MicroTurbine) Single GC 1 (One Grid Connect MicroTurbine) Kw (Kilowatts) High Incident + Fault Configured for GC (Grid Connect), as one single unit. Also displays the kilowatt output and the system severity fault code. Displays the highest fault type plus the highest identification number of the faults currently reported by the system. This information should be forwarded to the Authorized Service Provider (ASP), if requested. Submenu 2 of 7 Clear Incident Clear Incident High Incident plus Fault # (Clear) Clear Incident clears the highest level fault (if possible), in an attempt to return the system to standby. Incident displays the system severity level (SSL) fault code and the highest fault type plus the highest identification number of the faults currently reported by the system. (Duplicate information as in High Incident 1/7 above.) If the fault was able to be cleared, the fault # line will be updated with the new highest SSL fault or system OK if all faults were cleared. If the same fault remains, then the fault cannot be cleared. Submenu 3 of 7 System Configuration Allows the user to input system settings. Submenu 1 of 3 Power Connect Configured for Grid Connect. Submenu 2 of 3 Start Input Start Input
