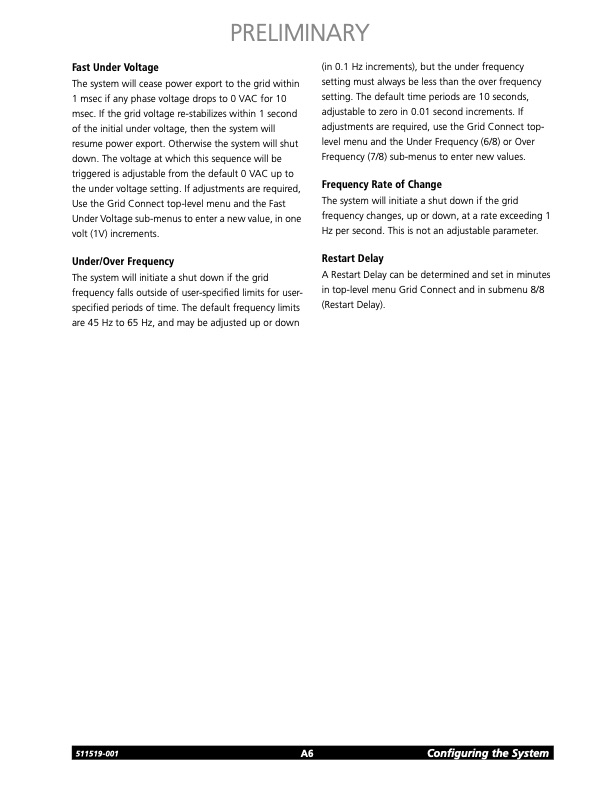

Fast Under Voltage The system will cease power export to the grid within 1 msec if any phase voltage drops to 0 VAC for 10 msec. If the grid voltage re-stabilizes within 1 second of the initial under voltage, then the system will resume power export. Otherwise the system will shut down. The voltage at which this sequence will be triggered is adjustable from the default 0 VAC up to the under voltage setting. If adjustments are required, Use the Grid Connect top-level menu and the Fast Under Voltage sub-menus to enter a new value, in one volt (1V) increments. Under/Over Frequency The system will initiate a shut down if the grid frequency falls outside of user-specified limits for user- specified periods of time. The default frequency limits are 45 Hz to 65 Hz, and may be adjusted up or down (in 0.1 Hz increments), but the under frequency setting must always be less than the over frequency setting. The default time periods are 10 seconds, adjustable to zero in 0.01 second increments. If adjustments are required, use the Grid Connect top- level menu and the Under Frequency (6/8) or Over Frequency (7/8) sub-menus to enter new values. Frequency Rate of Change The system will initiate a shut down if the grid frequency changes, up or down, at a rate exceeding 1 Hz per second. This is not an adjustable parameter. Restart Delay A Restart Delay can be determined and set in minutes in top-level menu Grid Connect and in submenu 8/8 (Restart Delay). PRELIMINARY 511519-001 A6 Configuring the SystemPDF Image | C60 Mech
