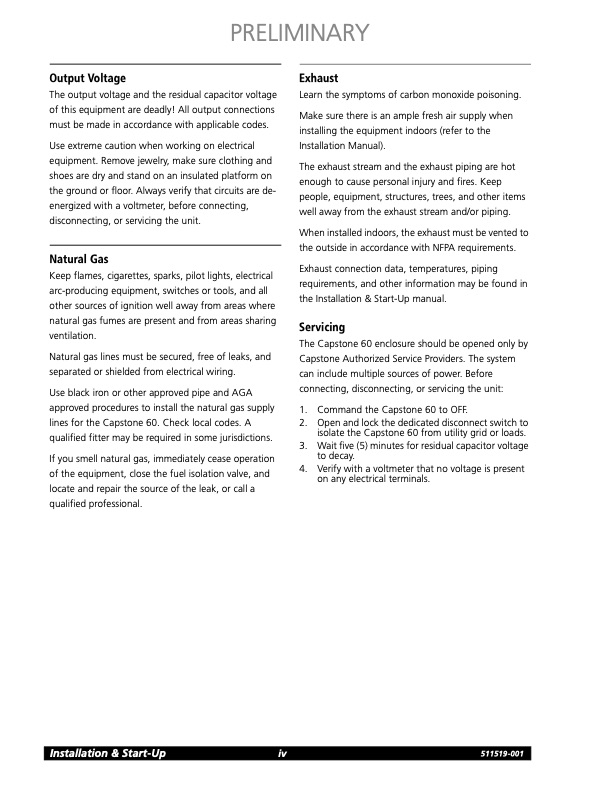

PRELIMINARY Output Voltage The output voltage and the residual capacitor voltage of this equipment are deadly! All output connections must be made in accordance with applicable codes. Use extreme caution when working on electrical equipment. Remove jewelry, make sure clothing and shoes are dry and stand on an insulated platform on the ground or floor. Always verify that circuits are de- energized with a voltmeter, before connecting, disconnecting, or servicing the unit. Natural Gas Keep flames, cigarettes, sparks, pilot lights, electrical arc-producing equipment, switches or tools, and all other sources of ignition well away from areas where natural gas fumes are present and from areas sharing ventilation. Natural gas lines must be secured, free of leaks, and separated or shielded from electrical wiring. Use black iron or other approved pipe and AGA approved procedures to install the natural gas supply lines for the Capstone 60. Check local codes. A qualified fitter may be required in some jurisdictions. If you smell natural gas, immediately cease operation of the equipment, close the fuel isolation valve, and locate and repair the source of the leak, or call a qualified professional. Exhaust Learn the symptoms of carbon monoxide poisoning. Make sure there is an ample fresh air supply when installing the equipment indoors (refer to the Installation Manual). The exhaust stream and the exhaust piping are hot enough to cause personal injury and fires. Keep people, equipment, structures, trees, and other items well away from the exhaust stream and/or piping. When installed indoors, the exhaust must be vented to the outside in accordance with NFPA requirements. Exhaust connection data, temperatures, piping requirements, and other information may be found in the Installation & Start-Up manual. Servicing The Capstone 60 enclosure should be opened only by Capstone Authorized Service Providers. The system can include multiple sources of power. Before connecting, disconnecting, or servicing the unit: 1. 2. 3. 4. Command the Capstone 60 to OFF. Open and lock the dedicated disconnect switch to isolate the Capstone 60 from utility grid or loads. Wait five (5) minutes for residual capacitor voltage to decay. Verify with a voltmeter that no voltage is present on any electrical terminals. Installation & Start-Up iv 511519-001PDF Image | C60 Mech
