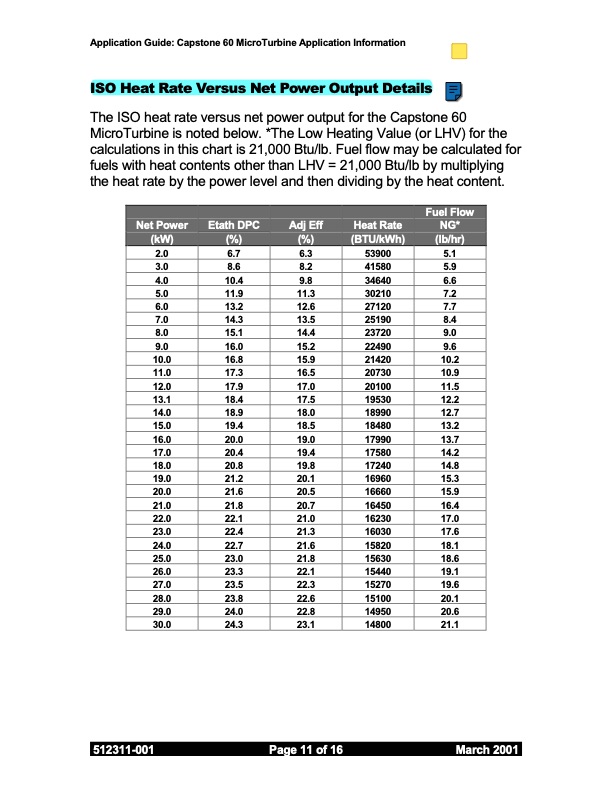

Application Guide: Capstone 60 MicroTurbine Application Information ISO Heat Rate Versus Net Power Output Details The ISO heat rate versus net power output for the Capstone 60 MicroTurbine is noted below. *The Low Heating Value (or LHV) for the calculations in this chart is 21,000 Btu/lb. Fuel flow may be calculated for fuels with heat contents other than LHV = 21,000 Btu/lb by multiplying the heat rate by the power level and then dividing by the heat content. Net Power Etath DPC Adj Eff Heat Rate Fuel Flow NG* (kW) (%) (%) (BTU/kWh) (lb/hr) 2.0 6.7 3.0 8.6 4.0 10.4 5.0 11.9 6.0 13.2 7.0 14.3 8.0 15.1 9.0 16.0 10.0 16.8 11.0 17.3 12.0 17.9 13.1 18.4 14.0 18.9 15.0 19.4 16.0 20.0 17.0 20.4 18.0 20.8 19.0 21.2 20.0 21.6 21.0 21.8 22.0 22.1 23.0 22.4 24.0 22.7 25.0 23.0 26.0 23.3 27.0 23.5 28.0 23.8 29.0 24.0 30.0 24.3 6.3 53900 5.1 8.2 41580 5.9 9.8 34640 6.6 11.3 30210 7.2 12.6 27120 7.7 13.5 25190 8.4 14.4 23720 9.0 15.2 22490 9.6 15.9 21420 10.2 16.5 20730 10.9 17.0 20100 11.5 17.5 19530 12.2 18.0 18990 12.7 18.5 18480 13.2 19.0 17990 13.7 19.4 17580 14.2 19.8 17240 14.8 20.1 16960 15.3 20.5 16660 15.9 20.7 16450 16.4 21.0 16230 17.0 21.3 16030 17.6 21.6 15820 18.1 21.8 15630 18.6 22.1 15440 19.1 22.3 15270 19.6 22.6 15100 20.1 22.8 14950 20.6 23.1 14800 21.1 512311-001 Page 11 of 16 March 2001.PDF Image | C60 App Guide
