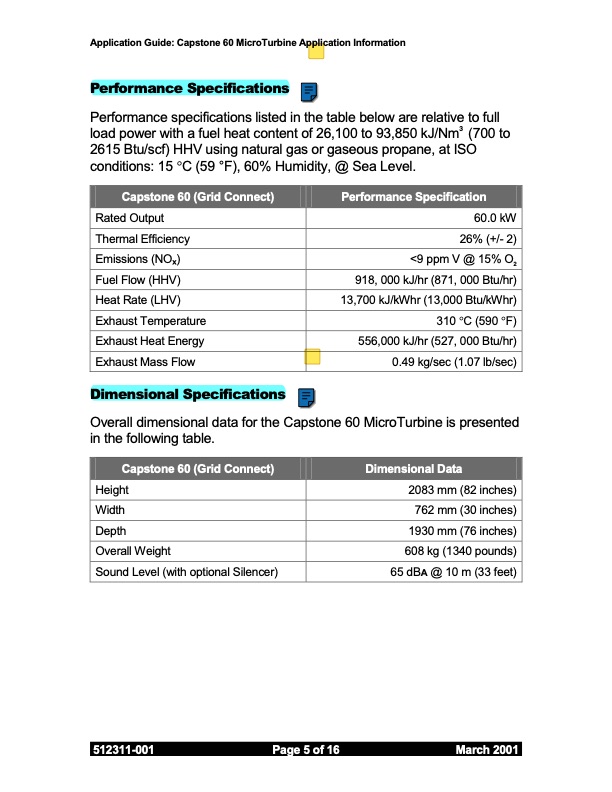

Application Guide: Capstone 60 MicroTurbine Application Information Performance Specifications Performance specifications listed in the table below are relative to full load power with a fuel heat content of 26,100 to 93,850 kJ/Nm3 (700 to 2615 Btu/scf) HHV using natural gas or gaseous propane, at ISO conditions: 15 °C (59 °F), 60% Humidity, @ Sea Level. Capstone 60 (Grid Connect) Performance Specification Rated Output Thermal Efficiency Emissions (NOx) Fuel Flow (HHV) Heat Rate (LHV) Exhaust Temperature Exhaust Heat Energy Exhaust Mass Flow Dimensional Specifications 60.0 kW 26% (+/- 2) <9 ppm V @ 15% O2 918, 000 kJ/hr (871, 000 Btu/hr) 13,700 kJ/kWhr (13,000 Btu/kWhr) 310 °C (590 °F) 556,000 kJ/hr (527, 000 Btu/hr) 0.49 kg/sec (1.07 lb/sec) Overall dimensional data for the Capstone 60 MicroTurbine is presented in the following table. Capstone 60 (Grid Connect) Dimensional Data Height Width Depth Overall Weight Sound Level (with optional Silencer) 2083 mm (82 inches) 762 mm (30 inches) 1930 mm (76 inches) 608 kg (1340 pounds) 65 dBA @ 10 m (33 feet) 512311-001 Page 5 of 16 March 2001.PDF Image | C60 App Guide
