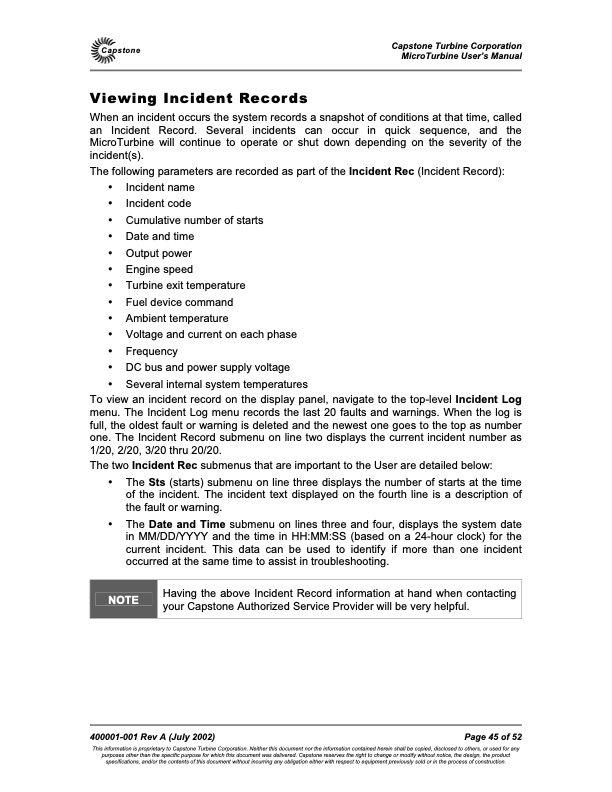

Capstone Viewing Incident Records Capstone Turbine Corporation MicroTurbine Userís Manual When an incident occurs the system records a snapshot of conditions at that time, called an Incident Record. Several incidents can occur in quick sequence, and the MicroTurbine will continue to operate or shut down depending on the severity of the incident(s). The following parameters are recorded as part of the Incident Rec (Incident Record): • Incident name • Incident code • Cumulative number of starts • Date and time • Output power • Engine speed • Turbine exit temperature • Fuel device command • Ambient temperature • Voltage and current on each phase • Frequency • DC bus and power supply voltage • Several internal system temperatures To view an incident record on the display panel, navigate to the top-level Incident Log menu. The Incident Log menu records the last 20 faults and warnings. When the log is full, the oldest fault or warning is deleted and the newest one goes to the top as number one. The Incident Record submenu on line two displays the current incident number as 1/20, 2/20, 3/20 thru 20/20. The two Incident Rec submenus that are important to the User are detailed below: • The Sts (starts) submenu on line three displays the number of starts at the time of the incident. The incident text displayed on the fourth line is a description of the fault or warning. • The Date and Time submenu on lines three and four, displays the system date in MM/DD/YYYY and the time in HH:MM:SS (based on a 24-hour clock) for the current incident. This data can be used to identify if more than one incident occurred at the same time to assist in troubleshooting. Having the above Incident Record information at hand when contacting your Capstone Authorized Service Provider will be very helpful. NOTE 400001-001 Rev A (July 2002) Page 45 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
