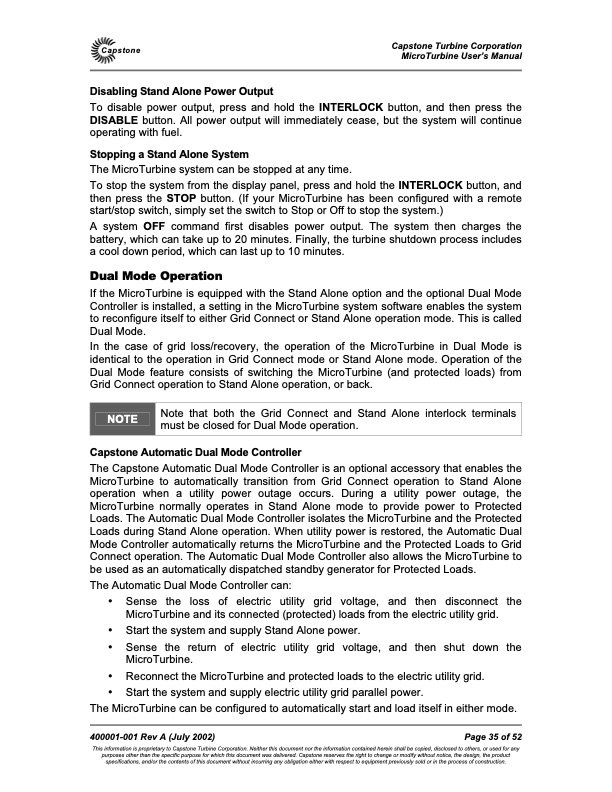

Text from PDF Page: 035
Capstone Disabling Stand Alone Power Output Capstone Turbine Corporation MicroTurbine Userís Manual To disable power output, press and hold the INTERLOCK button, and then press the DISABLE button. All power output will immediately cease, but the system will continue operating with fuel. Stopping a Stand Alone System The MicroTurbine system can be stopped at any time. To stop the system from the display panel, press and hold the INTERLOCK button, and then press the STOP button. (If your MicroTurbine has been configured with a remote start/stop switch, simply set the switch to Stop or Off to stop the system.) A system OFF command first disables power output. The system then charges the battery, which can take up to 20 minutes. Finally, the turbine shutdown process includes a cool down period, which can last up to 10 minutes. Dual Mode Operation If the MicroTurbine is equipped with the Stand Alone option and the optional Dual Mode Controller is installed, a setting in the MicroTurbine system software enables the system to reconfigure itself to either Grid Connect or Stand Alone operation mode. This is called Dual Mode. In the case of grid loss/recovery, the operation of the MicroTurbine in Dual Mode is identical to the operation in Grid Connect mode or Stand Alone mode. Operation of the Dual Mode feature consists of switching the MicroTurbine (and protected loads) from Grid Connect operation to Stand Alone operation, or back. NOTE Note that both the Grid Connect and Stand Alone interlock terminals must be closed for Dual Mode operation. Capstone Automatic Dual Mode Controller The Capstone Automatic Dual Mode Controller is an optional accessory that enables the MicroTurbine to automatically transition from Grid Connect operation to Stand Alone operation when a utility power outage occurs. During a utility power outage, the MicroTurbine normally operates in Stand Alone mode to provide power to Protected Loads. The Automatic Dual Mode Controller isolates the MicroTurbine and the Protected Loads during Stand Alone operation. When utility power is restored, the Automatic Dual Mode Controller automatically returns the MicroTurbine and the Protected Loads to Grid Connect operation. The Automatic Dual Mode Controller also allows the MicroTurbine to be used as an automatically dispatched standby generator for Protected Loads. The Automatic Dual Mode Controller can: • Sense the loss of electric utility grid voltage, and then disconnect the MicroTurbine and its connected (protected) loads from the electric utility grid. • Start the system and supply Stand Alone power. • Sense the return of electric utility grid voltage, and then shut down the MicroTurbine. • Reconnect the MicroTurbine and protected loads to the electric utility grid. • Start the system and supply electric utility grid parallel power. The MicroTurbine can be configured to automatically start and load itself in either mode. 400001-001 Rev A (July 2002) Page 35 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
