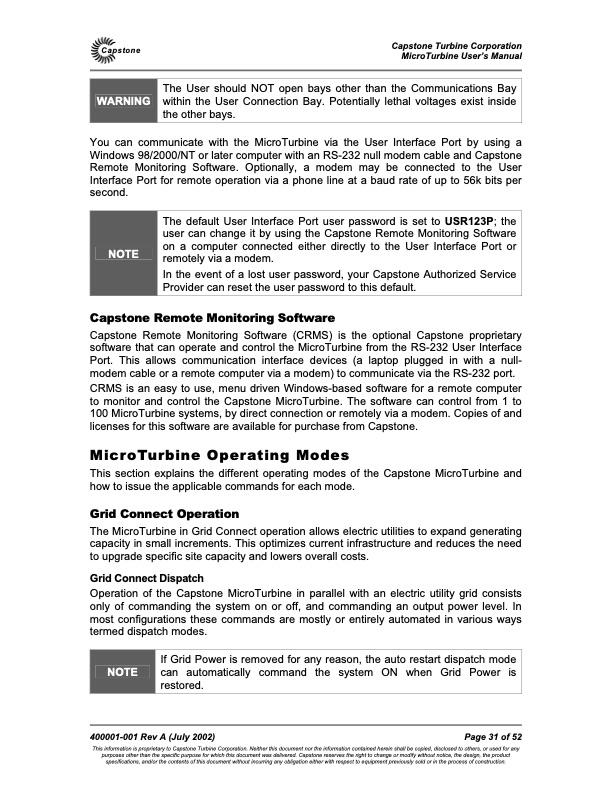

Capstone Capstone Turbine Corporation MicroTurbine Userís Manual WARNING The User should NOT open bays other than the Communications Bay within the User Connection Bay. Potentially lethal voltages exist inside the other bays. You can communicate with the MicroTurbine via the User Interface Port by using a Windows 98/2000/NT or later computer with an RS-232 null modem cable and Capstone Remote Monitoring Software. Optionally, a modem may be connected to the User Interface Port for remote operation via a phone line at a baud rate of up to 56k bits per second. Capstone Remote Monitoring Software Capstone Remote Monitoring Software (CRMS) is the optional Capstone proprietary software that can operate and control the MicroTurbine from the RS-232 User Interface Port. This allows communication interface devices (a laptop plugged in with a null- modem cable or a remote computer via a modem) to communicate via the RS-232 port. CRMS is an easy to use, menu driven Windows-based software for a remote computer to monitor and control the Capstone MicroTurbine. The software can control from 1 to 100 MicroTurbine systems, by direct connection or remotely via a modem. Copies of and licenses for this software are available for purchase from Capstone. MicroTurbine Operating Modes This section explains the different operating modes of the Capstone MicroTurbine and how to issue the applicable commands for each mode. Grid Connect Operation The MicroTurbine in Grid Connect operation allows electric utilities to expand generating capacity in small increments. This optimizes current infrastructure and reduces the need to upgrade specific site capacity and lowers overall costs. Grid Connect Dispatch Operation of the Capstone MicroTurbine in parallel with an electric utility grid consists only of commanding the system on or off, and commanding an output power level. In most configurations these commands are mostly or entirely automated in various ways termed dispatch modes. 400001-001 Rev A (July 2002) Page 31 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The default User Interface Port user password is set to USR123P; the user can change it by using the Capstone Remote Monitoring Software on a computer connected either directly to the User Interface Port or remotely via a modem. In the event of a lost user password, your Capstone Authorized Service Provider can reset the user password to this default. NOTE If Grid Power is removed for any reason, the auto restart dispatch mode can automatically command the system ON when Grid Power is restored.PDF Image | C60 2002 User Manual
