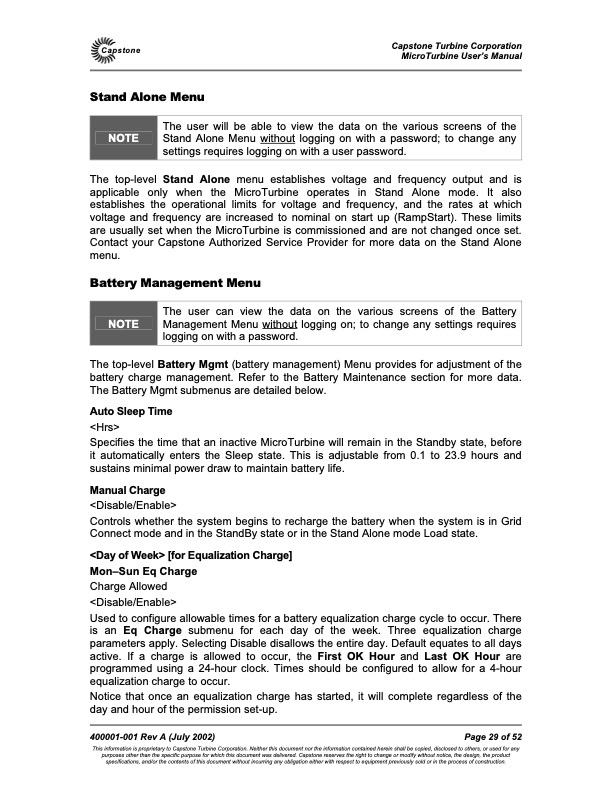

Text from PDF Page: 029

Capstone Stand Alone Menu Capstone Turbine Corporation MicroTurbine Userís Manual NOTE The user will be able to view the data on the various screens of the Stand Alone Menu without logging on with a password; to change any settings requires logging on with a user password. The top-level Stand Alone menu establishes voltage and frequency output and is applicable only when the MicroTurbine operates in Stand Alone mode. It also establishes the operational limits for voltage and frequency, and the rates at which voltage and frequency are increased to nominal on start up (RampStart). These limits are usually set when the MicroTurbine is commissioned and are not changed once set. Contact your Capstone Authorized Service Provider for more data on the Stand Alone menu. Battery Management Menu The top-level Battery Mgmt (battery management) Menu provides for adjustment of the battery charge management. Refer to the Battery Maintenance section for more data. The Battery Mgmt submenus are detailed below. Auto Sleep Time Specifies the time that an inactive MicroTurbine will remain in the Standby state, before it automatically enters the Sleep state. This is adjustable from 0.1 to 23.9 hours and sustains minimal power draw to maintain battery life. Manual Charge Controls whether the system begins to recharge the battery when the system is in Grid Connect mode and in the StandBy state or in the Stand Alone mode Load state. [for Equalization Charge] MonñSun Eq Charge Charge Allowed Used to configure allowable times for a battery equalization charge cycle to occur. There is an Eq Charge submenu for each day of the week. Three equalization charge parameters apply. Selecting Disable disallows the entire day. Default equates to all days active. If a charge is allowed to occur, the First OK Hour and Last OK Hour are programmed using a 24-hour clock. Times should be configured to allow for a 4-hour equalization charge to occur. Notice that once an equalization charge has started, it will complete regardless of the day and hour of the permission set-up. 400001-001 Rev A (July 2002) Page 29 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The user can view the data on the various screens of the Battery Management Menu without logging on; to change any settings requires logging on with a password.
