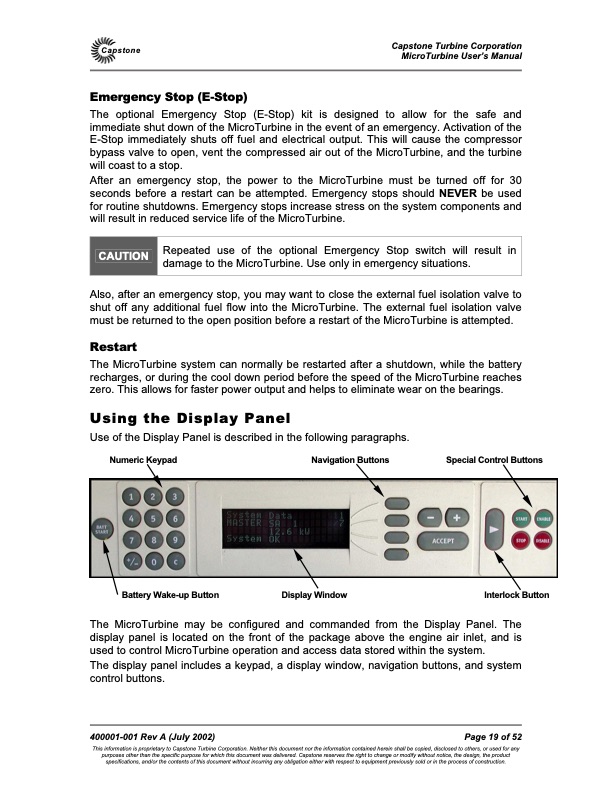

Capstone Emergency Stop (E-Stop) Capstone Turbine Corporation MicroTurbine Userís Manual The optional Emergency Stop (E-Stop) kit is designed to allow for the safe and immediate shut down of the MicroTurbine in the event of an emergency. Activation of the E-Stop immediately shuts off fuel and electrical output. This will cause the compressor bypass valve to open, vent the compressed air out of the MicroTurbine, and the turbine will coast to a stop. After an emergency stop, the power to the MicroTurbine must be turned off for 30 seconds before a restart can be attempted. Emergency stops should NEVER be used for routine shutdowns. Emergency stops increase stress on the system components and will result in reduced service life of the MicroTurbine. Repeated use of the optional Emergency Stop switch will result in damage to the MicroTurbine. Use only in emergency situations. Also, after an emergency stop, you may want to close the external fuel isolation valve to shut off any additional fuel flow into the MicroTurbine. The external fuel isolation valve must be returned to the open position before a restart of the MicroTurbine is attempted. Restart The MicroTurbine system can normally be restarted after a shutdown, while the battery recharges, or during the cool down period before the speed of the MicroTurbine reaches zero. This allows for faster power output and helps to eliminate wear on the bearings. Using the Display Panel Use of the Display Panel is described in the following paragraphs. Numeric Keypad Navigation Buttons Special Control Buttons CAUTION Battery Wake-up Button Display Window Interlock Button The MicroTurbine may be configured and commanded from the Display Panel. The display panel is located on the front of the package above the engine air inlet, and is used to control MicroTurbine operation and access data stored within the system. The display panel includes a keypad, a display window, navigation buttons, and system control buttons. 400001-001 Rev A (July 2002) Page 19 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
