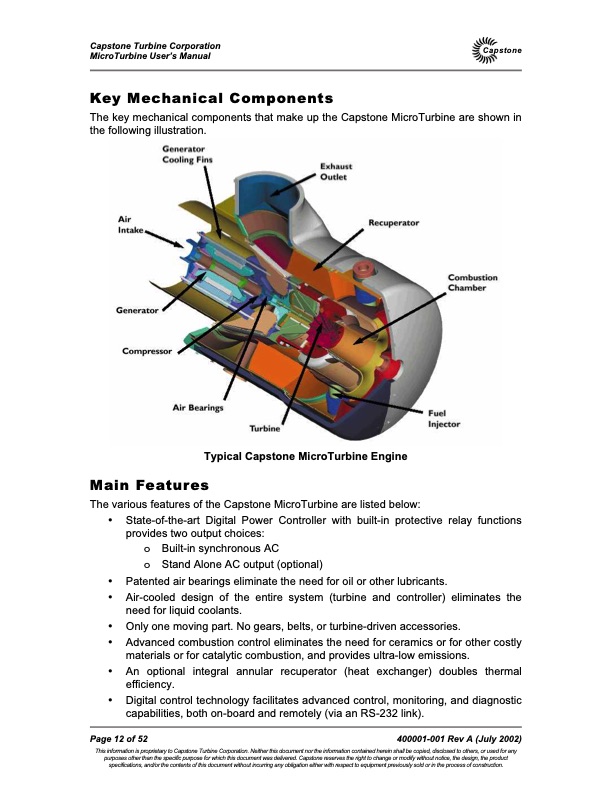

Capstone Turbine Corporation MicroTurbine Userís Manual Key Mechanical Components Capstone The key mechanical components that make up the Capstone MicroTurbine are shown in the following illustration. Typical Capstone MicroTurbine Engine Main Features The various features of the Capstone MicroTurbine are listed below: • State-of-the-art Digital Power Controller with built-in protective relay functions provides two output choices: o Built-insynchronousAC o StandAloneACoutput(optional) • Patented air bearings eliminate the need for oil or other lubricants. • Air-cooled design of the entire system (turbine and controller) eliminates the need for liquid coolants. • Only one moving part. No gears, belts, or turbine-driven accessories. • Advanced combustion control eliminates the need for ceramics or for other costly materials or for catalytic combustion, and provides ultra-low emissions. • An optional integral annular recuperator (heat exchanger) doubles thermal efficiency. • Digital control technology facilitates advanced control, monitoring, and diagnostic capabilities, both on-board and remotely (via an RS-232 link). Page 12 of 52 400001-001 Rev A (July 2002) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
