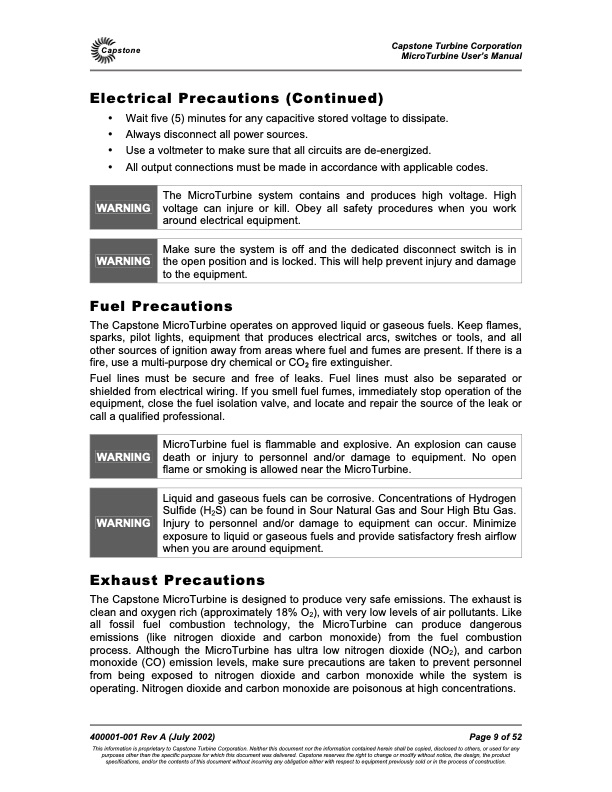

Capstone Electrical Precautions (Continued) Capstone Turbine Corporation MicroTurbine Userís Manual • Wait five (5) minutes for any capacitive stored voltage to dissipate. • Always disconnect all power sources. • Use a voltmeter to make sure that all circuits are de-energized. • All output connections must be made in accordance with applicable codes. WARNING The MicroTurbine system contains and produces high voltage. High voltage can injure or kill. Obey all safety procedures when you work around electrical equipment. WARNING Make sure the system is off and the dedicated disconnect switch is in the open position and is locked. This will help prevent injury and damage to the equipment. Fuel Precautions The Capstone MicroTurbine operates on approved liquid or gaseous fuels. Keep flames, sparks, pilot lights, equipment that produces electrical arcs, switches or tools, and all other sources of ignition away from areas where fuel and fumes are present. If there is a fire, use a multi-purpose dry chemical or CO2 fire extinguisher. Fuel lines must be secure and free of leaks. Fuel lines must also be separated or shielded from electrical wiring. If you smell fuel fumes, immediately stop operation of the equipment, close the fuel isolation valve, and locate and repair the source of the leak or call a qualified professional. WARNING MicroTurbine fuel is flammable and explosive. An explosion can cause death or injury to personnel and/or damage to equipment. No open flame or smoking is allowed near the MicroTurbine. WARNING Liquid and gaseous fuels can be corrosive. Concentrations of Hydrogen Sulfide (H2S) can be found in Sour Natural Gas and Sour High Btu Gas. Injury to personnel and/or damage to equipment can occur. Minimize exposure to liquid or gaseous fuels and provide satisfactory fresh airflow when you are around equipment. Exhaust Precautions The Capstone MicroTurbine is designed to produce very safe emissions. The exhaust is clean and oxygen rich (approximately 18% O2), with very low levels of air pollutants. Like all fossil fuel combustion technology, the MicroTurbine can produce dangerous emissions (like nitrogen dioxide and carbon monoxide) from the fuel combustion process. Although the MicroTurbine has ultra low nitrogen dioxide (NO2), and carbon monoxide (CO) emission levels, make sure precautions are taken to prevent personnel from being exposed to nitrogen dioxide and carbon monoxide while the system is operating. Nitrogen dioxide and carbon monoxide are poisonous at high concentrations. 400001-001 Rev A (July 2002) Page 9 of 52 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C60 2002 User Manual
