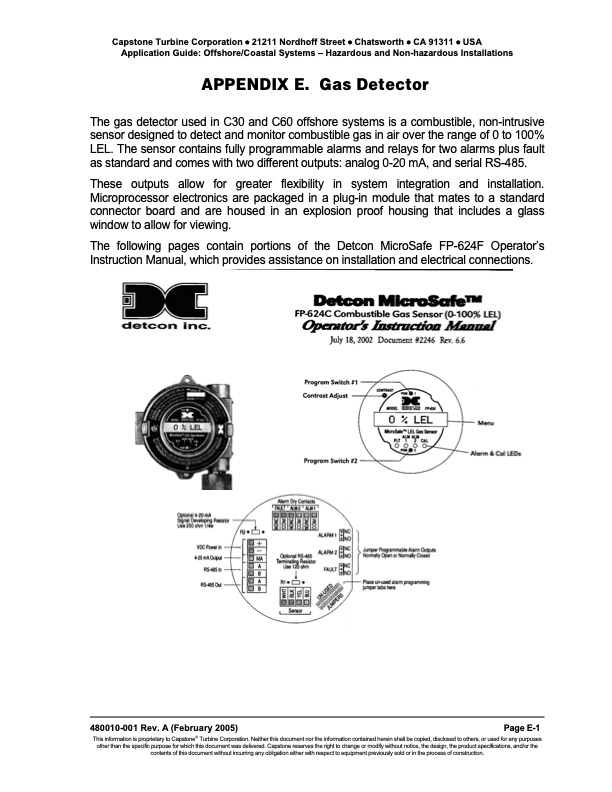

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Offshore/Coastal Systems – Hazardous and Non-hazardous Installations APPENDIX E. Gas Detector The gas detector used in C30 and C60 offshore systems is a combustible, non-intrusive sensor designed to detect and monitor combustible gas in air over the range of 0 to 100% LEL. The sensor contains fully programmable alarms and relays for two alarms plus fault as standard and comes with two different outputs: analog 0-20 mA, and serial RS-485. These outputs allow for greater flexibility in system integration and installation. Microprocessor electronics are packaged in a plug-in module that mates to a standard connector board and are housed in an explosion proof housing that includes a glass window to allow for viewing. The following pages contain portions of the Detcon MicroSafe FP-624F Operator’s Instruction Manual, which provides assistance on installation and electrical connections. 480010-001 Rev. A (February 2005) Page E-1 This information is proprietary to Capstone® Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Offshore/Coastal Systems - Hazardous and Non-Hazardous Installation Options for the Capstone MicroTurbine
