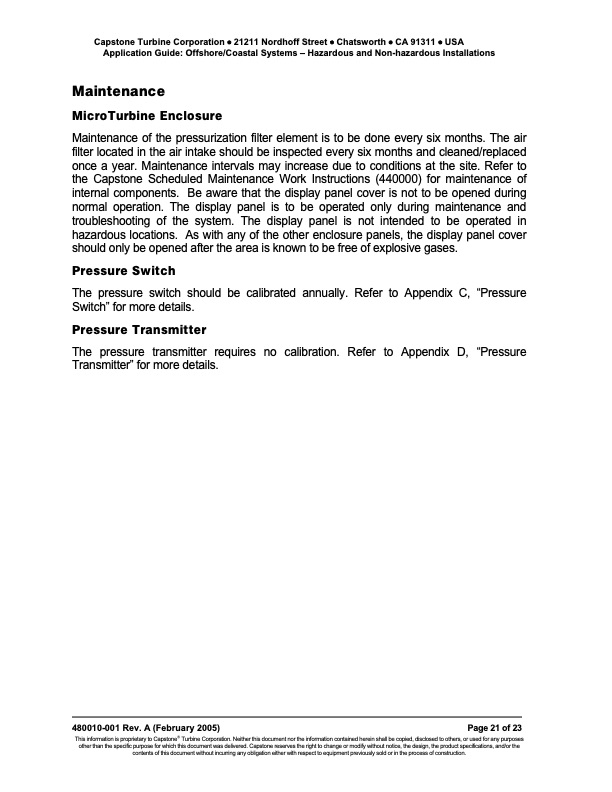

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Offshore/Coastal Systems – Hazardous and Non-hazardous Installations Maintenance MicroTurbine Enclosure Maintenance of the pressurization filter element is to be done every six months. The air filter located in the air intake should be inspected every six months and cleaned/replaced once a year. Maintenance intervals may increase due to conditions at the site. Refer to the Capstone Scheduled Maintenance Work Instructions (440000) for maintenance of internal components. Be aware that the display panel cover is not to be opened during normal operation. The display panel is to be operated only during maintenance and troubleshooting of the system. The display panel is not intended to be operated in hazardous locations. As with any of the other enclosure panels, the display panel cover should only be opened after the area is known to be free of explosive gases. Pressure Switch The pressure switch should be calibrated annually. Refer to Appendix C, “Pressure Switch” for more details. Pressure Transmitter The pressure transmitter requires no calibration. Refer to Appendix D, “Pressure Transmitter” for more details. 480010-001 Rev. A (February 2005) Page 21 of 23 This information is proprietary to Capstone® Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Offshore/Coastal Systems - Hazardous and Non-Hazardous Installation Options for the Capstone MicroTurbine
