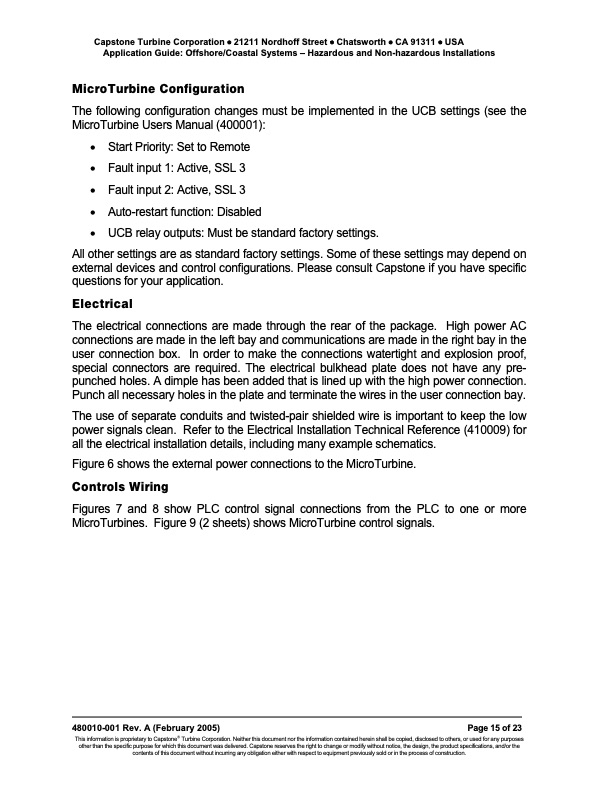

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Offshore/Coastal Systems – Hazardous and Non-hazardous Installations MicroTurbine Configuration The following configuration changes must be implemented in the UCB settings (see the MicroTurbine Users Manual (400001): • Start Priority: Set to Remote • Fault input 1: Active, SSL 3 • Fault input 2: Active, SSL 3 • Auto-restart function: Disabled • UCB relay outputs: Must be standard factory settings. All other settings are as standard factory settings. Some of these settings may depend on external devices and control configurations. Please consult Capstone if you have specific questions for your application. Electrical The electrical connections are made through the rear of the package. High power AC connections are made in the left bay and communications are made in the right bay in the user connection box. In order to make the connections watertight and explosion proof, special connectors are required. The electrical bulkhead plate does not have any pre- punched holes. A dimple has been added that is lined up with the high power connection. Punch all necessary holes in the plate and terminate the wires in the user connection bay. The use of separate conduits and twisted-pair shielded wire is important to keep the low power signals clean. Refer to the Electrical Installation Technical Reference (410009) for all the electrical installation details, including many example schematics. Figure 6 shows the external power connections to the MicroTurbine. Controls Wiring Figures 7 and 8 show PLC control signal connections from the PLC to one or more MicroTurbines. Figure 9 (2 sheets) shows MicroTurbine control signals. 480010-001 Rev. A (February 2005) Page 15 of 23 This information is proprietary to Capstone® Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Offshore/Coastal Systems - Hazardous and Non-Hazardous Installation Options for the Capstone MicroTurbine
