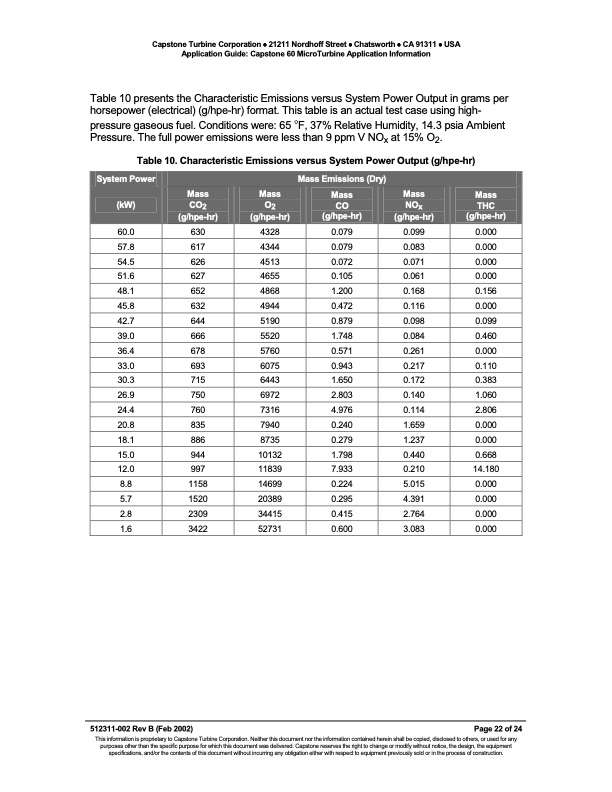

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone 60 MicroTurbine Application Information Table 10 presents the Characteristic Emissions versus System Power Output in grams per horsepower (electrical) (g/hpe-hr) format. This table is an actual test case using high- pressure gaseous fuel. Conditions were: 65 °F, 37% Relative Humidity, 14.3 psia Ambient Pressure. The full power emissions were less than 9 ppm V NOx at 15% O2. Table 10. Characteristic Emissions versus System Power Output (g/hpe-hr) System Power Mass Emissions (Dry) (kW) Mass CO2 (g/hpe-hr) Mass O2 (g/hpe-hr) Mass CO (g/hpe-hr) Mass NOx (g/hpe-hr) Mass THC (g/hpe-hr) 60.0 630 4328 57.8 617 4344 54.5 626 4513 51.6 627 4655 48.1 652 4868 45.8 632 4944 42.7 644 5190 39.0 666 5520 36.4 678 5760 33.0 693 6075 30.3 715 6443 26.9 750 6972 24.4 760 7316 20.8 835 7940 18.1 886 8735 15.0 944 10132 12.0 997 11839 8.8 1158 14699 5.7 1520 20389 2.8 2309 34415 1.6 3422 52731 0.079 0.099 0.079 0.083 0.072 0.071 0.105 0.061 1.200 0.168 0.472 0.116 0.879 0.098 1.748 0.084 0.571 0.261 0.943 0.217 1.650 0.172 2.803 0.140 4.976 0.114 0.240 1.659 0.279 1.237 1.798 0.440 7.933 0.210 0.224 5.015 0.295 4.391 0.415 2.764 0.600 3.083 0.000 0.000 0.000 0.000 0.156 0.000 0.099 0.460 0.000 0.110 0.383 1.060 2.806 0.000 0.000 0.668 14.180 0.000 0.000 0.000 0.000 512311-002 Rev B (Feb 2002) Page 22 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Capstone 60 MicroTurbine: Application Information
