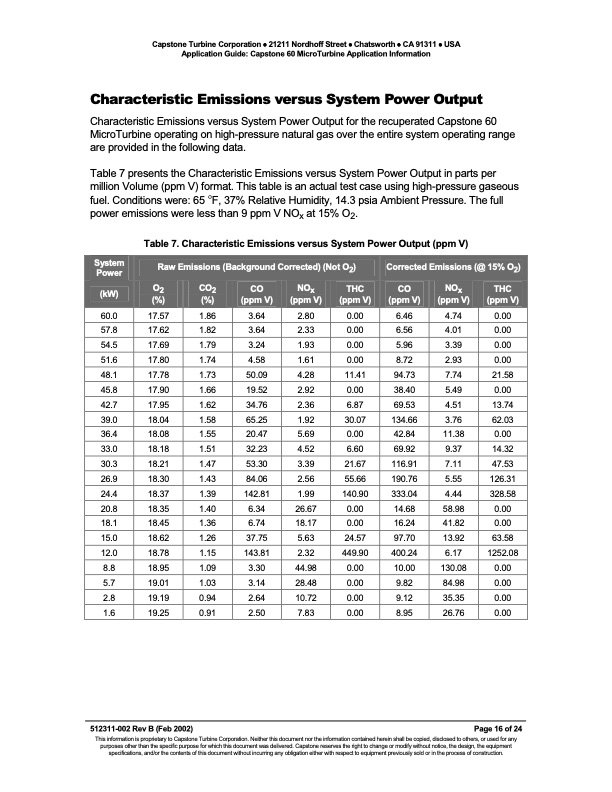

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Capstone 60 MicroTurbine Application Information Characteristic Emissions versus System Power Output Characteristic Emissions versus System Power Output for the recuperated Capstone 60 MicroTurbine operating on high-pressure natural gas over the entire system operating range are provided in the following data. Table 7 presents the Characteristic Emissions versus System Power Output in parts per million Volume (ppm V) format. This table is an actual test case using high-pressure gaseous fuel. Conditions were: 65 °F, 37% Relative Humidity, 14.3 psia Ambient Pressure. The full power emissions were less than 9 ppm V NOx at 15% O2. Table 7. Characteristic Emissions versus System Power Output (ppm V) System Power Raw Emissions (Background Corrected) (Not O2) Corrected Emissions (@ 15% O2) (kW) O2 (%) CO2 (%) CO (ppm V) NOx (ppm V) THC (ppm V) CO (ppm V) NOx (ppm V) THC (ppm V) 60.0 17.57 1.86 57.8 17.62 1.82 54.5 17.69 1.79 51.6 17.80 1.74 48.1 17.78 1.73 45.8 17.90 1.66 42.7 17.95 1.62 39.0 18.04 1.58 36.4 18.08 1.55 33.0 18.18 1.51 30.3 18.21 1.47 26.9 18.30 1.43 24.4 18.37 1.39 20.8 18.35 1.40 18.1 18.45 1.36 15.0 18.62 1.26 12.0 18.78 1.15 8.8 18.95 1.09 5.7 19.01 1.03 2.8 19.19 0.94 1.6 19.25 0.91 512311-002 Rev B (Feb 2002) 3.64 2.80 0.00 3.64 2.33 0.00 3.24 1.93 0.00 4.58 1.61 0.00 50.09 4.28 11.41 19.52 2.92 0.00 34.76 2.36 6.87 65.25 1.92 30.07 20.47 5.69 0.00 32.23 4.52 6.60 53.30 3.39 21.67 84.06 2.56 55.66 142.81 1.99 140.90 6.34 26.67 0.00 6.74 18.17 0.00 37.75 5.63 24.57 143.81 2.32 449.90 3.30 44.98 0.00 3.14 28.48 0.00 2.64 10.72 0.00 2.50 7.83 0.00 6.46 6.56 5.96 8.72 94.73 38.40 69.53 134.66 42.84 69.92 116.91 190.76 333.04 14.68 16.24 97.70 400.24 10.00 9.82 9.12 8.95 4.74 0.00 4.01 0.00 3.39 0.00 2.93 0.00 7.74 21.58 5.49 0.00 4.51 13.74 3.76 62.03 11.38 0.00 9.37 14.32 7.11 47.53 5.55 126.31 4.44 328.58 58.98 0.00 41.82 0.00 13.92 63.58 6.17 1252.08 130.08 0.00 84.98 0.00 35.35 0.00 26.76 0.00 Page 16 of 24 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Capstone 60 MicroTurbine: Application Information
