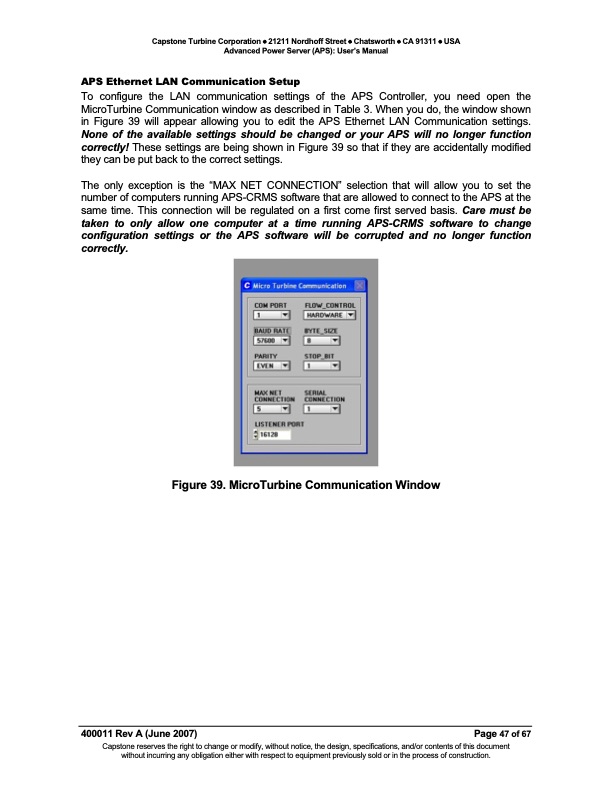

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual APS Ethernet LAN Communication Setup To configure the LAN communication settings of the APS Controller, you need open the MicroTurbine Communication window as described in Table 3. When you do, the window shown in Figure 39 will appear allowing you to edit the APS Ethernet LAN Communication settings. None of the available settings should be changed or your APS will no longer function correctly! These settings are being shown in Figure 39 so that if they are accidentally modified they can be put back to the correct settings. The only exception is the “MAX NET CONNECTION” selection that will allow you to set the number of computers running APS-CRMS software that are allowed to connect to the APS at the same time. This connection will be regulated on a first come first served basis. Care must be taken to only allow one computer at a time running APS-CRMS software to change configuration settings or the APS software will be corrupted and no longer function correctly. Figure 39. MicroTurbine Communication Window 400011 Rev A (June 2007) Page 47 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
