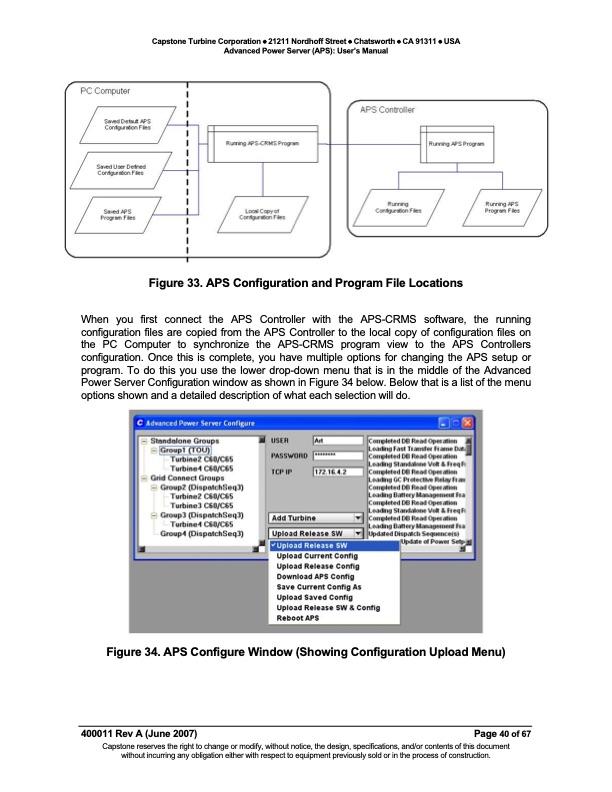

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual Figure 33. APS Configuration and Program File Locations When you first connect the APS Controller with the APS-CRMS software, the running configuration files are copied from the APS Controller to the local copy of configuration files on the PC Computer to synchronize the APS-CRMS program view to the APS Controllers configuration. Once this is complete, you have multiple options for changing the APS setup or program. To do this you use the lower drop-down menu that is in the middle of the Advanced Power Server Configuration window as shown in Figure 34 below. Below that is a list of the menu options shown and a detailed description of what each selection will do. Figure 34. APS Configure Window (Showing Configuration Upload Menu) 400011 Rev A (June 2007) Page 40 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
