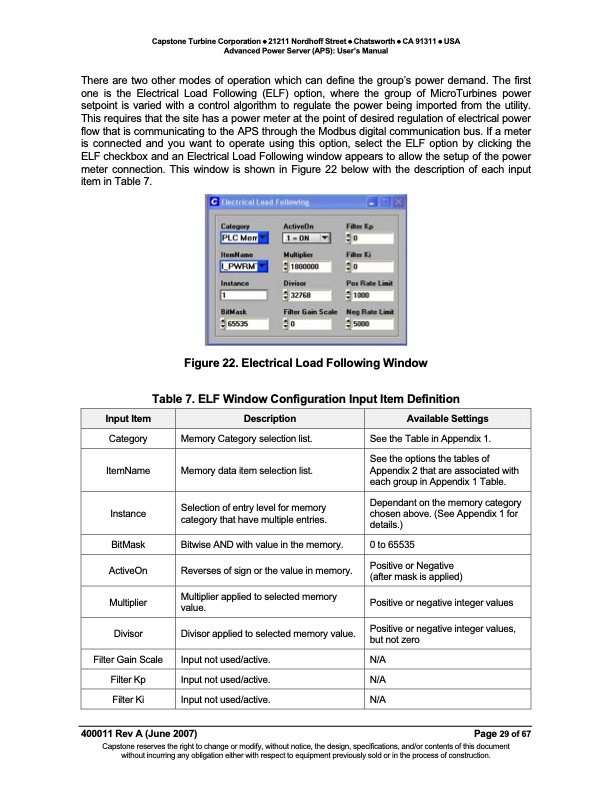

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): User’s Manual There are two other modes of operation which can define the group’s power demand. The first one is the Electrical Load Following (ELF) option, where the group of MicroTurbines power setpoint is varied with a control algorithm to regulate the power being imported from the utility. This requires that the site has a power meter at the point of desired regulation of electrical power flow that is communicating to the APS through the Modbus digital communication bus. If a meter is connected and you want to operate using this option, select the ELF option by clicking the ELF checkbox and an Electrical Load Following window appears to allow the setup of the power meter connection. This window is shown in Figure 22 below with the description of each input item in Table 7. Figure 22. Electrical Load Following Window Table 7. ELF Window Configuration Input Item Definition Input Item Description Available Settings Category BitMask ActiveOn Multiplier Divisor Filter Gain Scale Filter Kp Filter Ki Memory Category selection list. Bitwise AND with value in the memory. Reverses of sign or the value in memory. Multiplier applied to selected memory value. Divisor applied to selected memory value. Input not used/active. Input not used/active. Input not used/active. See the Table in Appendix 1. 0 to 65535 Positive or Negative (after mask is applied) Positive or negative integer values Positive or negative integer values, but not zero N/A N/A N/A Page 29 of 67 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. ItemName Memory data item selection list. See the options the tables of Appendix 2 that are associated with each group in Appendix 1 Table. Instance Selection of entry level for memory category that have multiple entries. Dependant on the memory category chosen above. (See Appendix 1 for details.) 400011 Rev A (June 2007)PDF Image | ADVANCED POWER SERVER (APS) USER’S MANUAL
